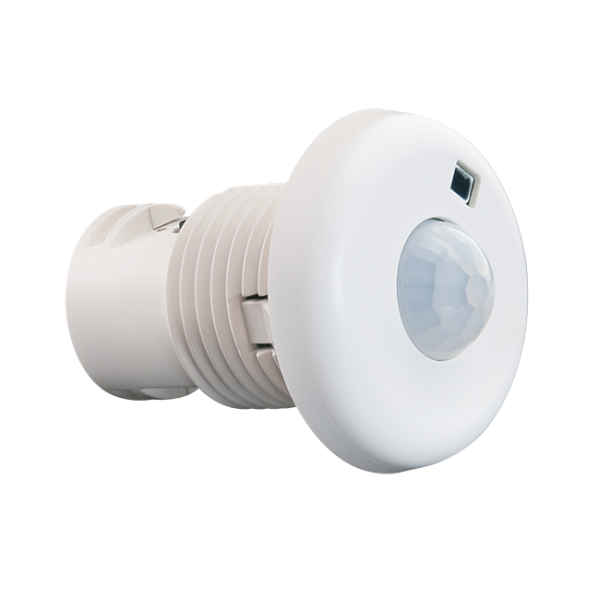

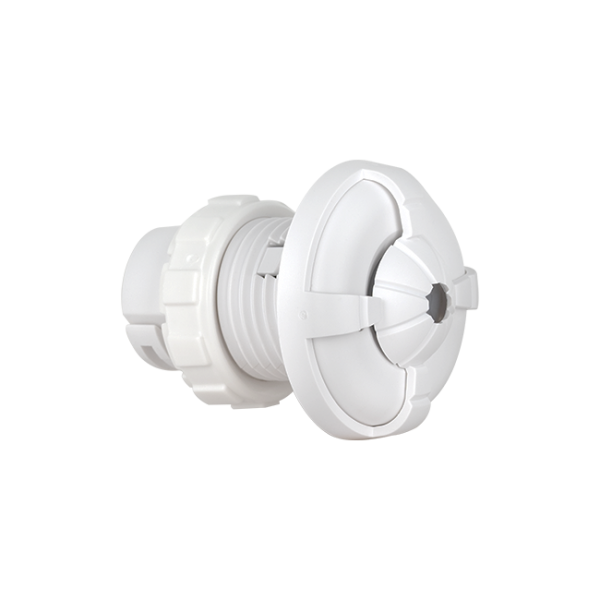

The Bluetooth to 0-10V PIR sensor controller integrates motion detection with Bluetooth® mesh networking for smart lighting control. It provides a built-in 20mA 0-10V signal output and supports extended mesh communication, relaying signals to neighboring devices. All devices on the 0-10V line can be broadcast-controlled via mobile application. Compatible with kinetic energy switches and EnOcean models EWSSB and EWSDB, it offers a 20–25m indoor wireless range, <0.5W standby power (ERP compliant), magnetic reset, onboard antenna, IP20 protection, and 5-year warranty.
Features
• Bluetooth to 0-10V signal PIR sensor controller, Bluetooth® mesh network
• Built-in 20mA 0-10V signal output
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on 0-10V line are broadcast controlled by mobile application
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation.
• Standby power consumption less than 0.5W, meet latest ERP regulation
• Available with Magnetic reset (Touch the top part of sensor for 5 seconds)
• On-board antenna
• Waterproof grade: IP20
• 5 years warranty
