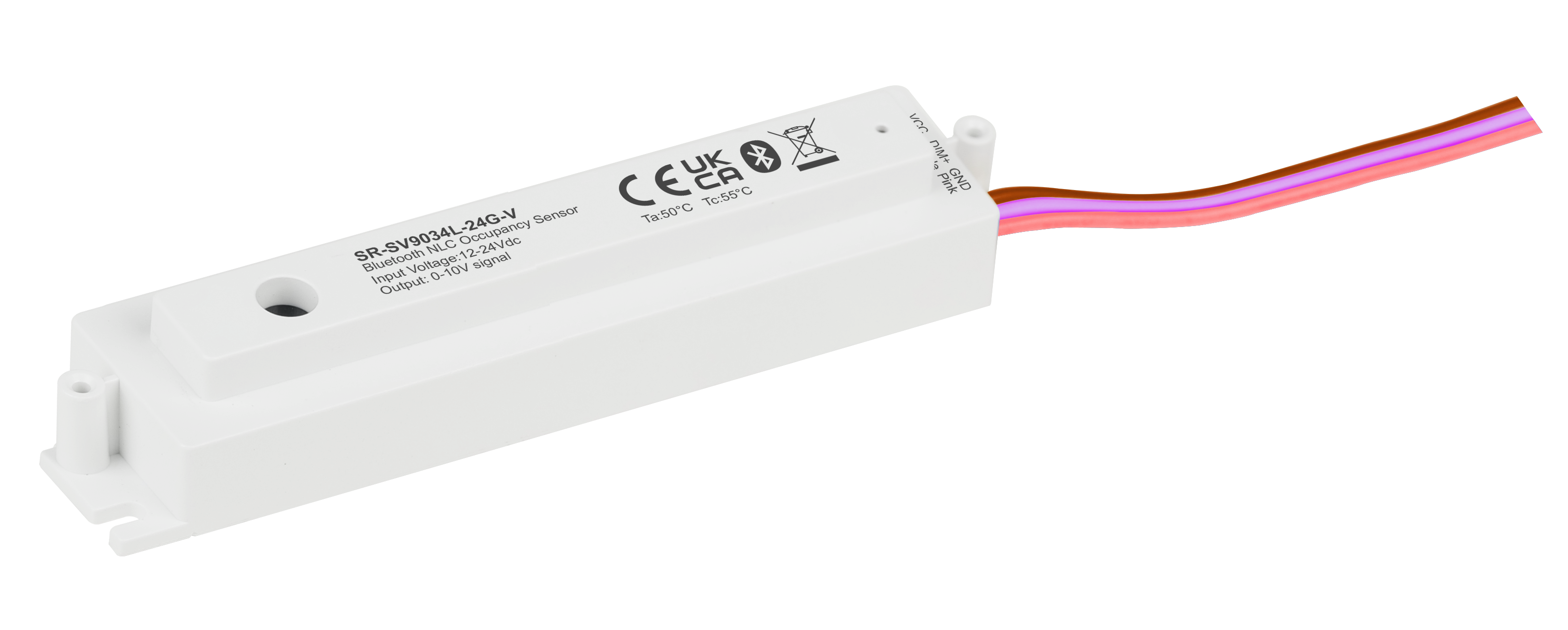

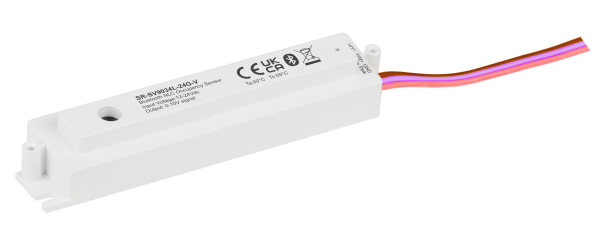

0-10V BLE Fixture-integrated 24G Presence Sensor SR-SV9034L-24G-V

This Bluetooth to 0-10V signal MW sensor controller enables reliable wireless lighting control via Bluetooth® mesh, offering extended communication range of 20–25m indoors. With built-in 0-10V output, it supports broadcast control of all devices on the 0-10V line through a mobile app. Compatible with kinetic and EnOcean switches (EWSSB, EWSDB), it features sensitivity adjustment, low standby power (<0.5W, ERP compliant), and convenient magnetic or manual reset. Ideal for flexible, energy-efficient smart lighting solutions.

Key Features

• Bluetooth to 0-10V signal MW sensor controller, Bluetooth® mesh network
• Built-in 0-10V signal output
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on 0-10V line are broadcast controlled by mobile application
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation.
• Standby power consumption less than 0.5W,meet latest ERP regulation
• Support sensitivity adjustment, Mesh Network, a better method to deal with false trigger
• Available with Magnetic reset (Touch the top part of sensor for 5 seconds) and manual reset
• On-board antenna
• Waterproof grade: IP20
• 5 years warranty
