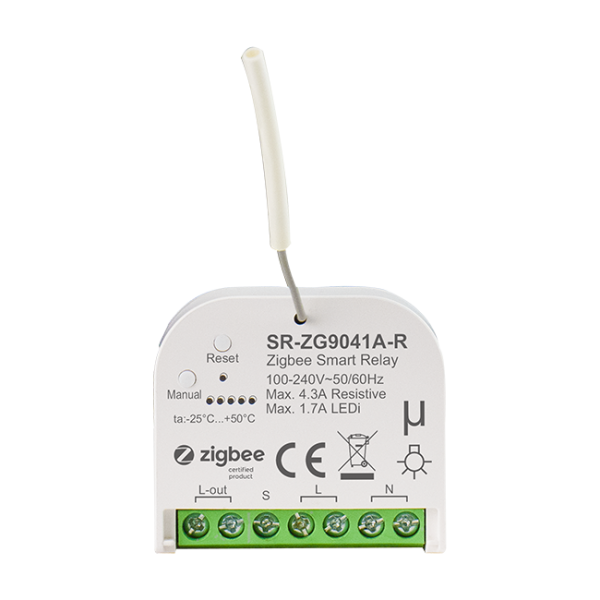

Compact Zigbee 3.0 in-wall smart relay module for ON/OFF control of lights or devices. Supports resistive, capacitive, and inductive loads up to 4.3A. Features power metering, Touchlink commissioning, Zigbee Green Power, and compatibility with major Zigbee gateways. Easy and safe installation with screw terminals.
Features
• ZigBee in wall smart relay module based on latest ZigBee 3.0 protocol
• Supports resistive loads, capacitive loads or inductive loads
• 1 channel output, max. load up to 4.3A
• Input and Output with Screw Terminals, Safe and Reliable
• Enables to control ON/OFF of connected light source
• ZigBee end device that supports Touchlink commissioning
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports zigbee green power feature and can bind max. 20 zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Active power and energy metering functionality
• Mini Size, Easy to be Installed into a standard size wall box
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9041A-R User Manual
