ZigBee & Rotary Manual Control Wall Mounted AC Phase-Cut Dimmer SR-ZG2835RAC

The SR-ZG2835RAC is an innovative wall mounted AC phase-cut dimmer with ZigBee 3.0 control interface and rotary manual control. The AC dimmer is designed with 100-240VAC wide input and output, 1 channel with maximum 600W output for incandescent and HV halogen loads and 300W for dimmable LED loads. The pahse cut dimmer can operate under both 2-wire connection with no neutral lead and 3-wire connection with neutral lead. The ZigBee AC dimmer adopts trailing edge diming (reverse phase control). The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The dimmer also supports start-up brightness setting which solves the problem that some dimmable LED drivers can not be turned on after they are dimmed to a low level and turned off. The AC dimmer can be compatible with universal ZigBee coordinator or gateway controller to be paired to the network. It is controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the dimmer.

The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches directly without zigbee hub or gateway.

Key Features

• AC phase-cut dimmer with ZigBee control interface and rotary manual control
• Safe and reliable full isolation design
• 100-240VAC input and 100-240VAC output

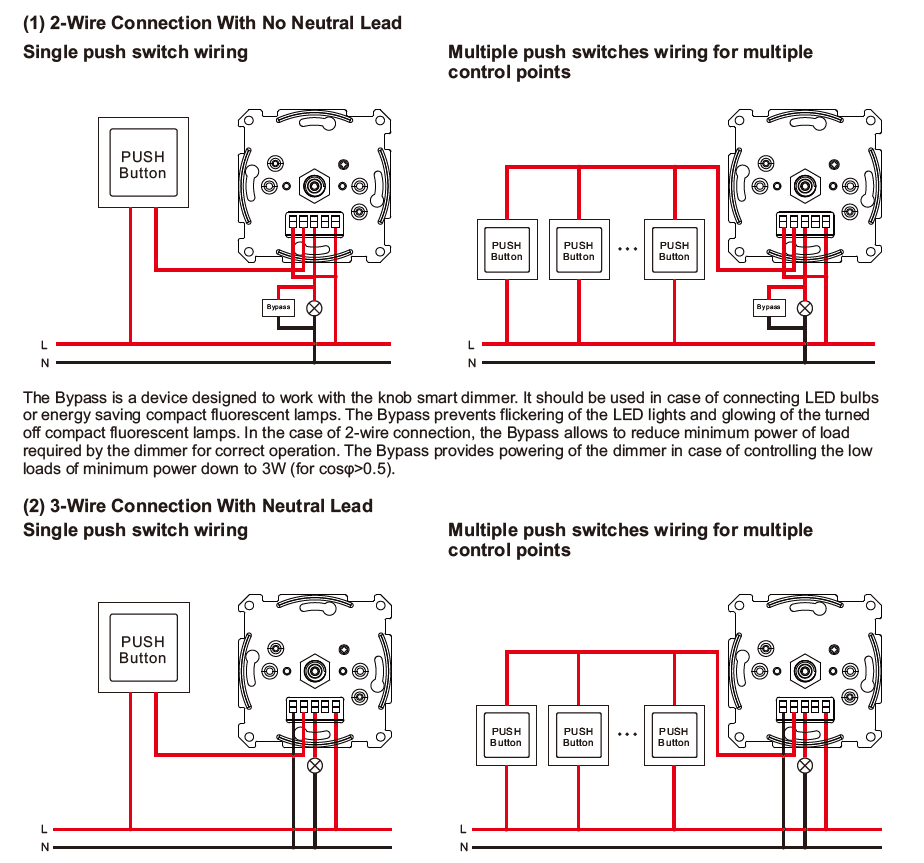

• Can operate under both 2-wire connection with no neutral lead and 3-wire connection with neutral lead
• 1 channel output with maximum 600W output for incandescent and halogen loads and 300W for dimmable LED loads
• Trailing edge dimming
• Compatible with universal ZigBee coordinator or gateway controller
• Controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the dimmer
• Can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink
• Supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power switches
• Innovative minimum brightness setting function
• Supports start-up brightness setting
• To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights
• Input and Output with Screw Terminals, Safe and Reliable
• Easy to be Installed into A Standard Size Wall Box
