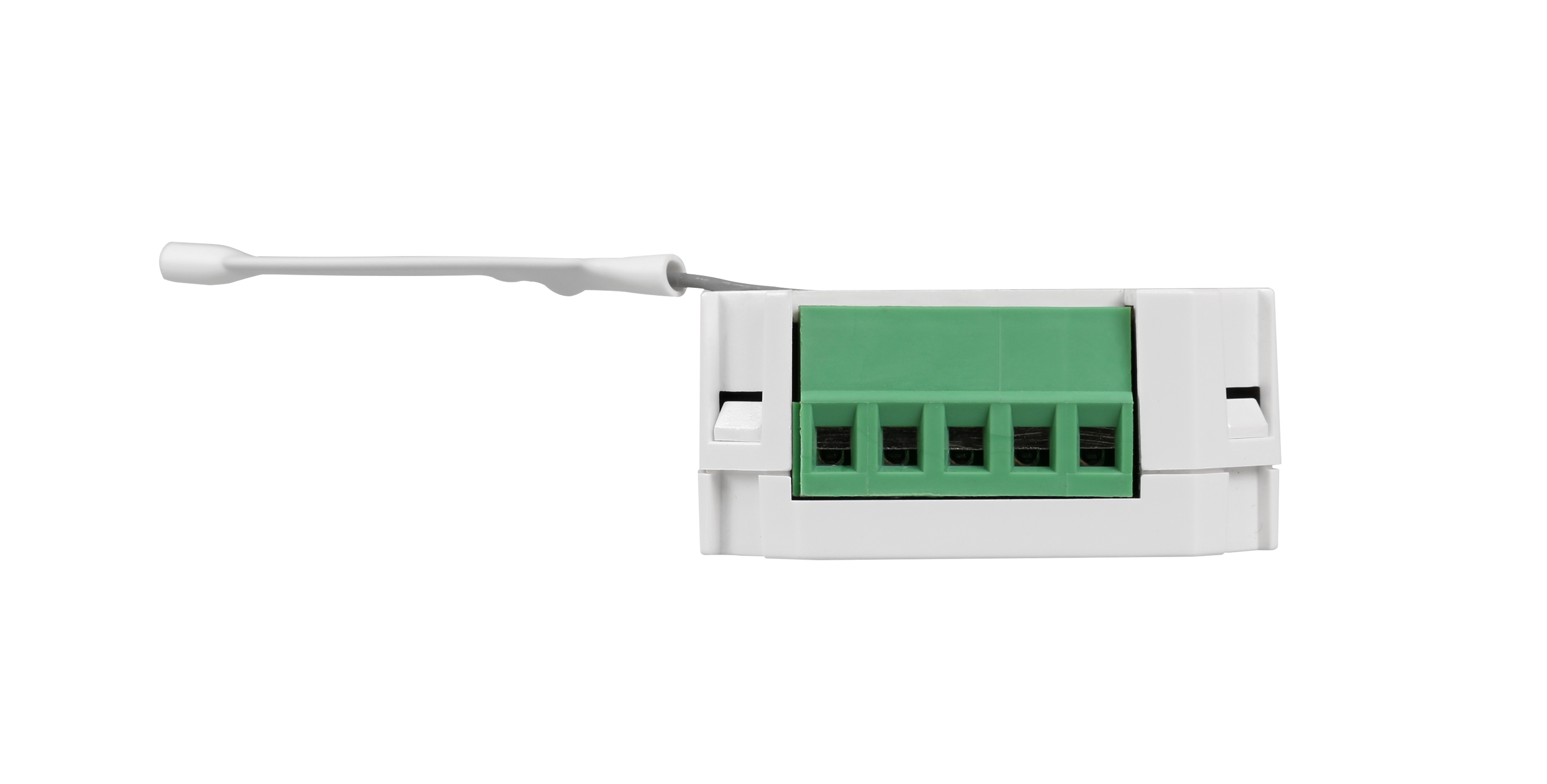

ZigBee Mini AC Triac Phase-Cut Dimmer Single Live Wire with Power-Metering SR-ZG9040A-S

ZigBee Mini AC Triac Phase-Cut Dimmer Single Live Wire with Power-Metering SR-ZG9040A-S

1. Single live wire wiring (No neutral wire is required). Using single live wire wiring can easily realize wireless intelligent transformation for some old buildings which may not have reserved neutral wires.

2. Precise energy management: the power-meter enables real-time and accurate monitoring of the energy consumption of lighting device.

The SR-ZG9040A-S is an innovative AC phase-cut dimmer with ZigBee control interface. The AC dimmer is designed with 100-240VAC wide input and output, 1 channel and maximum 400W output. The ZigBee AC dimmer is available with both leading edge dimming version and trailing edge dimming version for choosing. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The AC dimmer can be compatible with universal ZigBee coordinator or gateway controller to be paired to the network. It is controllable from your ZigBee gateway interface or remote controllers that are added to the network and bind with the dimmer.

The zigbee device is based on zigbee 3.0, it can be linked to and controlled by max. 30 zigbee remotes that support zigbee light link through touchlink. It also supports the new zigbee green power feature, and can bind to and be controlled by max. 20 zigbee green power remotes directly without zigbee hub or gateway.

Key Features

• ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC wide input and output voltage
• Supports resistive loads and capacitive loads
• 1 channel output, up to 400W
• input and output with screw terminals, safe and reliable
• Both leading edge version and trailing edge version are available for choosing, default factory setting is trailing edge
• Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Supports self-forming zigbee network without coordinator and add other devices to the network
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Compatible with universal ZigBee gateway products
• Can be controlled by push switches or momentary switches
• Mini size, easy to be installed into a standard size wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
