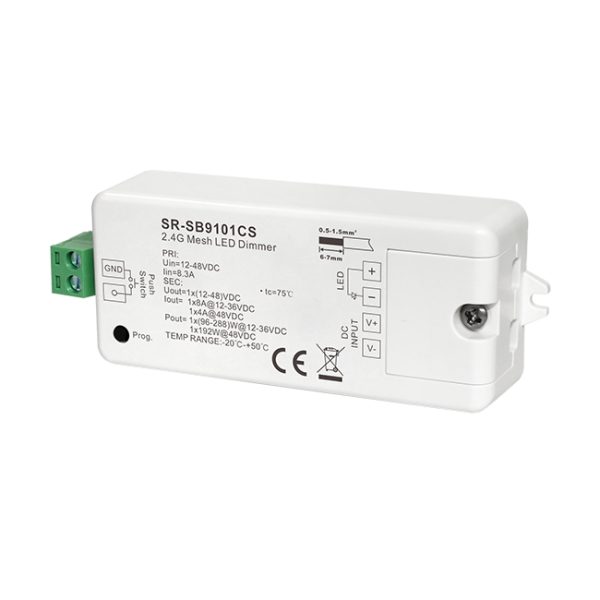

The radio frequency of this universal RF+Bluetooth LED dimmer is 2.4GHz. It can be controlled through both smart App and remote controls, without gateway required. This dimmer can easily and quickly pair to the smart App by simply pushing the Prog. Button. With mesh network and much longer control distance, it can transmit received signal to neighbor devices, with maximum 30m transmission distance between every two neighbor devices. Encrypted two-way communication and quick status feedback enable safe & reliable data transmission. Moreover, this dimmer is compatible with universal RF+Bluetooth remotes, and each controller can pair to max. 8 remotes. Cloud control is available for remote access, and works with Amazon Alexa and Google Home.
Key Features
• Universal RF+Bluetooth LED dimmer, radio frequency: 2.4GHz
• Controlled through both smart App and remote controls, no gateway required
• Easy & quick pairing to the smart App by simply pushing the Prog. button
• Mesh network, much longer control distance, transmits received signal to neighbor devices
• Up to 30m transmission distance between every two neighbor devices
• Encrypted two-way communication, quick status feedback, safe & reliable data transmission
• Compatible with universal RF+Bluetooth remotes, each LED controller can pair to max. 8 remotes
• Cloud control is available for remote access, works with Amazon Alexa and Google Home
• Waterproof grade: IP20
Specifications
Part No. |
Input |
Output |
Output | Remarks | Size(LxWxH) |
---|---|---|---|---|---|
SR-SB9101CS |
12-48VDC |
1x8A@12-36VDC
1x4A@48VDC
|
1x(96-288)W@12-36VDC
1x192W@48VDC
|
Constant Voltage |
95x37x20mm |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-SB9101CS User Manual
