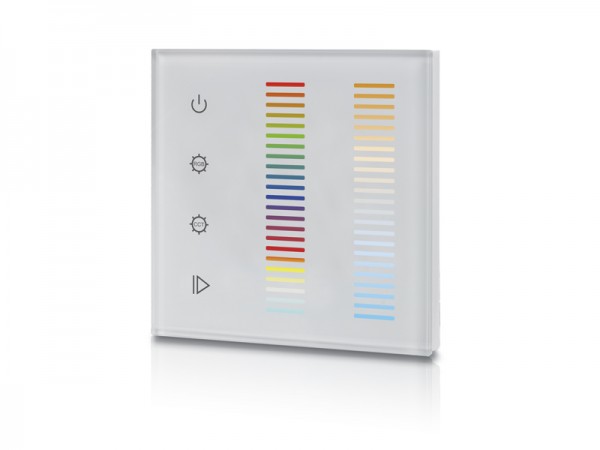

- Real 5 Channel Double Touch Slider RGB+CCT LED Controller SR-2834-5C
SR-2834-5C is a real 5 channel full touch LED controller designed with double touch sliders which offer fast and accurate RGB color tone adjustment for RGB LEDs and color temperature adjustment for dual color LEDs (warm white and cool white). Designed with double touch sliders, one for RGB color tone adjustment and the other for CCT adjustment, the touch controller can control RGB color and CCT respectively without having to switch. RGB channels' brightness and dual white channels' brightness can be adjustable respectively by keys, thus RGB channels and dual color channels can be controlled separately without any confusion. Each controller can control 1 zone with endless receivers in each zone and up to 3 different colors or scenes can be saved for each zone. 10 built-in color changing effects are available with pause function. LED indicators for back lighting enable users to find the controller easily even in the dark. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems. Standard European size and American size are optional.
Key Features
Function Introduction
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2834-5C | 12-24VDC/100-230VAC | 434MHz/869.5MHz | 86*86*29.1 | RF Wireless |
SR-2834-5C (US) | 12-24VDC/100-230VAC | 916.5MHz | 75*120*29.5 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009EA-5C | 12-36VDC | 5CH, 8A/CH | 480-1440W | Constant Voltage | 59*170*29 |
Product Dimension for SR-2834RGB&CCT
Product Dimension for SR-2834RGB&CCT(US)
Installation Diagram for SR-2834RGB&CCT
Installation Diagram for SR-2834RGB&CCT(US)
Controller Wiring Diagram for SR-2834RGB&CCT
Controller Wiring Diagram for SR-2834RGB&CCT(US)
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2834-5C User Manual
SR-2834-5C (US) User Manual
