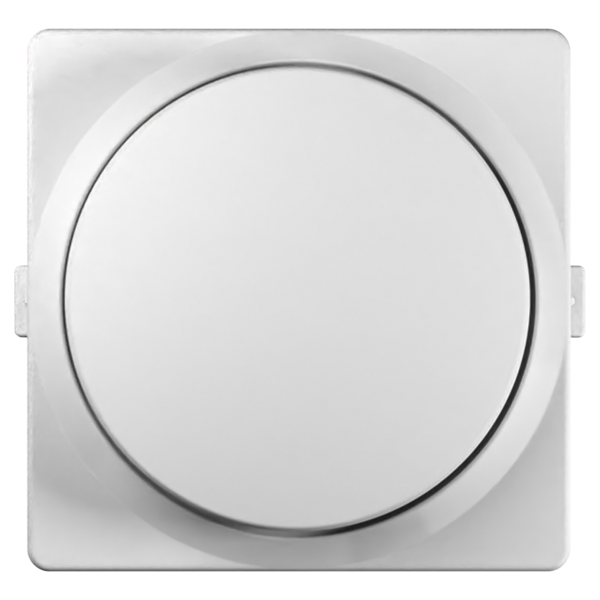

The Matter Knob Smart Dimmer is a versatile and innovative solution for controlling light intensity. It supports both no-neutral and neutral wiring installations, offering flexibility for various electrical setups. With a 100-240VAC input and 230V output, it can handle resistive, capacitive, and inductive loads, delivering up to 250W per channel. The dimmer allows for setting minimum brightness and startup brightness, ensuring optimal lighting conditions. It can be controlled via app (Matter compatibility with Apple Home, Amazon Alexa, Google Home). Voice control is supported through Apple Siri, Google Assistant, and Amazon Alexa. The device is compatible with universal AC push switches and standard Denmark-sized frames for easy installation. Operating on a 2.4GHz frequency, it features advanced microprocessor control, smart light source detection, and energy metering, along with a soft start function. Ideal for modern smart homes, the dimmer also offers a waterproof IP20 rating.
Features:
• 100-240VAC input and 230V output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
• Supports resistive loads, capacitive loads or inductive loads
• Enables to set minimum brightness and startup brightness
• 1 channel output, up to 250W
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• App control through Matter (e.g. Apple Home, Amazon Alexa, Google Home)
• Can be voice controlled through Apple Siri, Google Assistant, Amazon Alexa
• With push switch input, can be controlled by universal AC push switches
• Standard size, can be compatible with existing Danmark standard frames, and installed into standard size wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function
• Innovative minimum dimming level and startup brightness setting functions
• The Bypass is an extension unit
Specification
| Part No. | Input | Output Voltage | Output Current | Radio Frequency | Size (LxWxH) |
|---|---|---|---|---|---|
| SR-MT2835RAC(DK) | 100-240VAC | 100-240VAC | 1.1A Max. | 2.4GHz | 46.8x44x36.4mm |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-MT2835RAC(DK) User Manual
