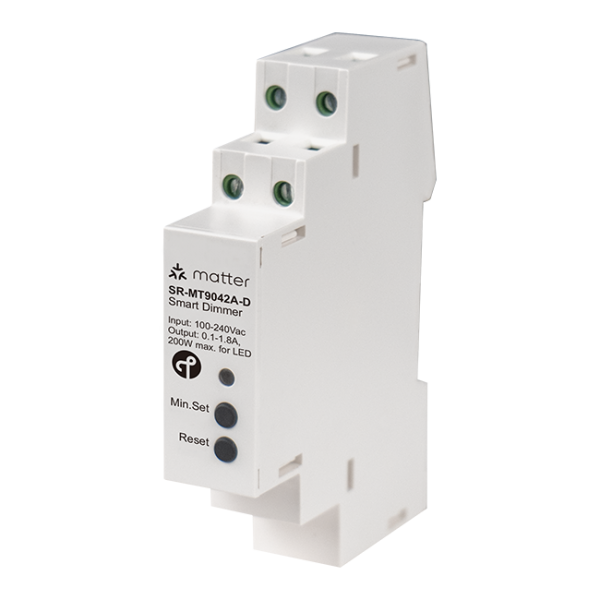

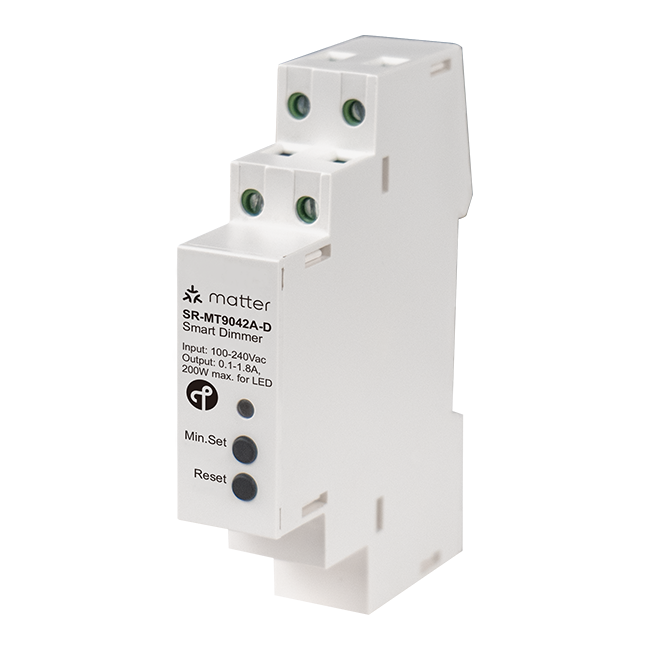

The Matter + Zigbee AC Din Rail Phase Cut Dimmer SR-MT9042A-D is a versatile dimmer designed to control lighting with a wide input and output voltage range of 100-240VAC. It supports resistive, capacitive, and inductive loads, making it suitable for various lighting applications. The dimmer offers a single channel output with a maximum capacity of up to 400W. Both input and output connections use screw terminals for secure and reliable installation.
Available in both leading edge and trailing edge versions, the dimmer is preset at the factory for easy configuration. It enables control of the ON/OFF status and light intensity of connected light sources. Control options include app control through Matter (compatible with Apple Home, Amazon Alexa, Google Home), touchlink remote control, and a green power kinetic switch.
The dimmer supports voice control via Apple Siri, Google Assistant, and Amazon Alexa, and helps overcome the limited availability of remote and wall switch devices within the Matter ecosystem. Additionally, it features power metering capabilities to monitor energy consumption.
Features
• Matter + Zigbee AC phase cut dimmer
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• App control + touchlink remote control + green power kinetic switch control
• App control through Matter (e.g. Apple Home, Amazon Alexa, Google Home)
• Can be voice controlled through Apple Siri, Google Assistant, Amazon Alexa
• Eliminates the shortcoming of Matter having few remote and wall switch devices
• Support power metering
Main Features
• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function
• Innovative minimum dimming level and startup brightness setting function
• Works with various types of switches – momentary, toggle, three-way, etc.
• Active element: semiconductor electronic switch
• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
• The Bypass is an extension unit
Download Center
To know further details of this product, please download the following user manual.
SR-MT9042A-D User Manual
