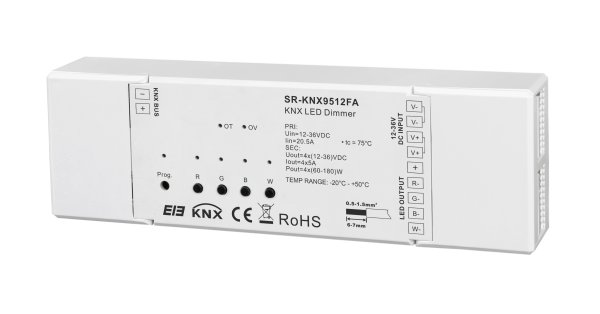

The KNX controller SR-KNX9512FA is an easy connection constant voltage RGBW LED controller with 4 channel, 5A per channel output, which can be compatible with KNX system to control RGB/RGBW LED lighting and support group, scene and sequence. The KNX controller is designed with newly updated outer shell which features easy connection terminal without screw to ensure easy and fast connection. 0%-100% smooth dimming without any flickering can be achieved by the KNX dimmer, which is perfect for human's vision. Default frequency is 600Hz PWM and frequency can be adjustable by factory setting.
Key Features
- 12-36V constant voltage RGBW KNX controller, 5A per channel, 4 channels ouput
- Designed with newly updated outer shell which features easy connection terminal without screw to ensure easy and fast connection.
- To control RGB/RGBW LED lighting
- Dimming range from 0%-100%
- Default frequency is 600Hz PWM and frequency can be adjustable by factory setting
- Support group, scene and sequence
- Compatible with KNX system
Download Center
To know further details of this product, please download the following user manual.
SR-KNX9512FA User Manual
