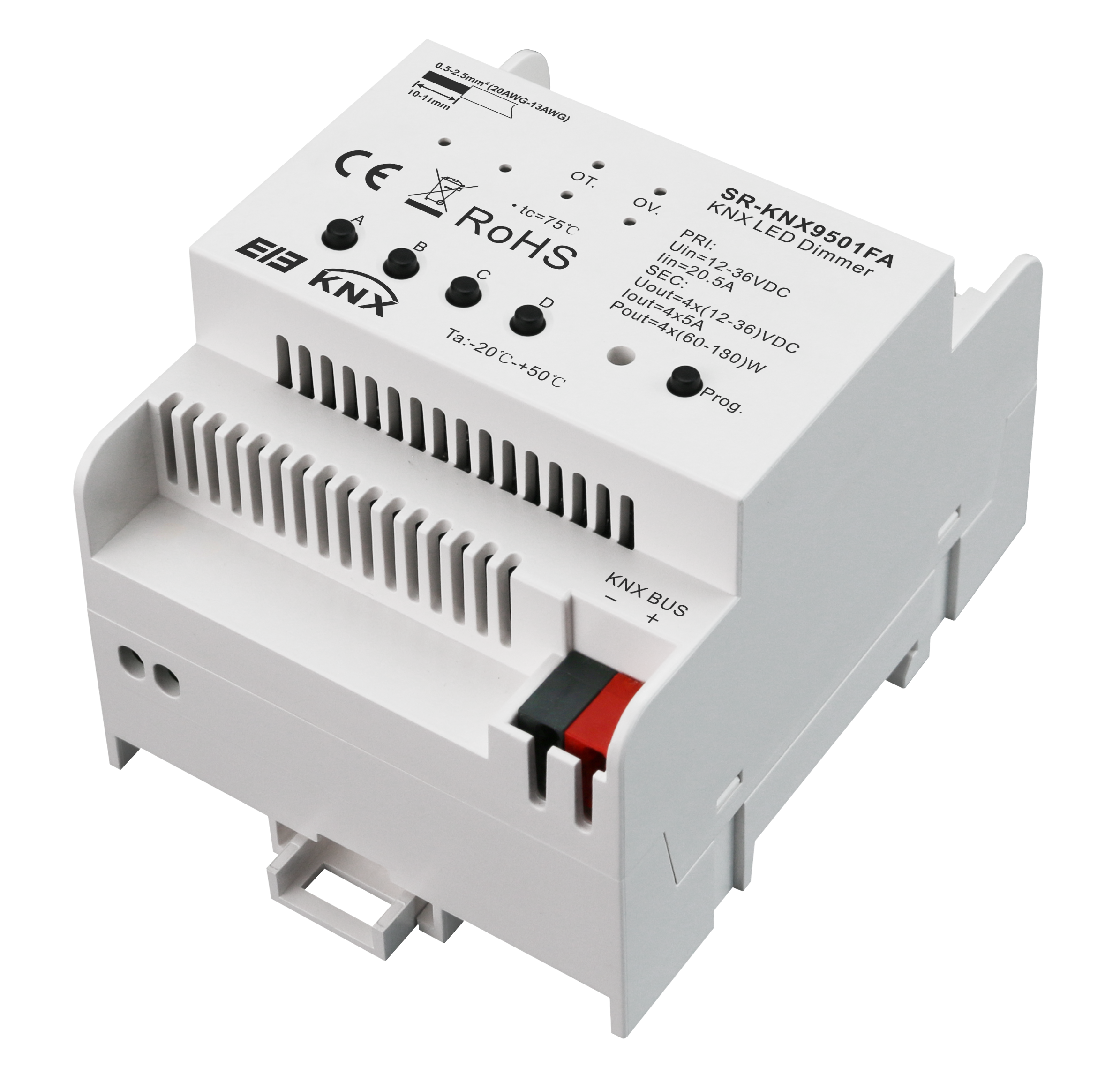

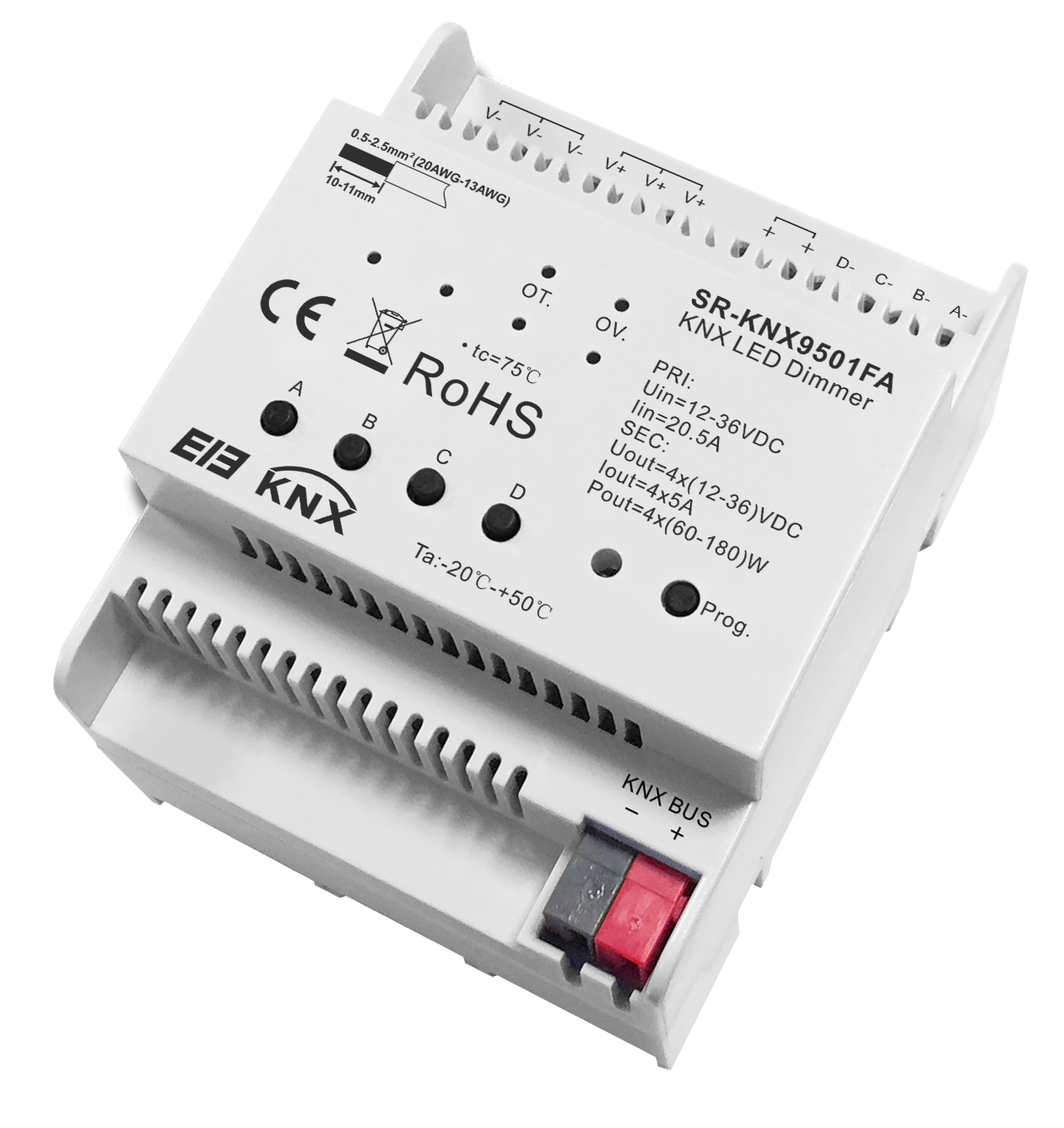

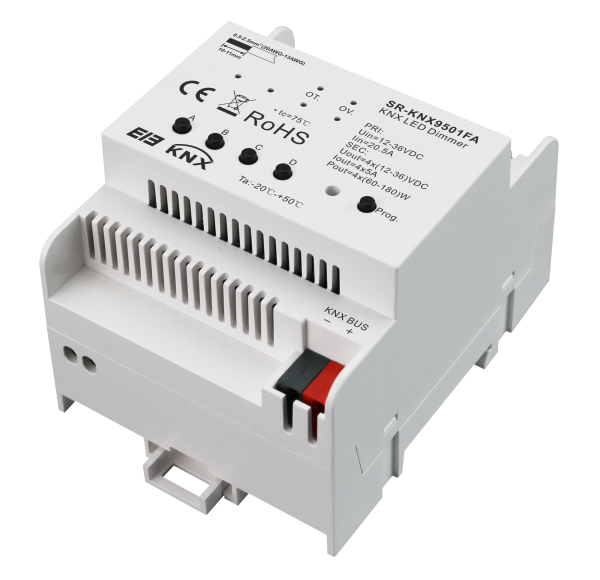

Constant Voltage KNX Dimmer SR-KNX9501FA

Constant Voltage KNX Dimmer SR-KNX9501FA
Constant Voltage KNX Dimmer SR-KNX9501FA
Constant Voltage KNX Dimmer SR-KNX9501FA
Move your mouse over image or click to enlarge
Constant Voltage KNX Dimmer SR-KNX9501FA Constant Voltage KNX Dimmer SR-KNX9501FA
Features

The KNX Dimmer SR-KNX9501FA is a constant voltage dimming controller with 4 channel, 5A per channel output, which can be compatible with KNX system to dim and switch single color LED lighting and support group, scene and sequence. 0%-100% smooth dimming without any flickering can be achieved by the KNX dimmer, which is perfect for human's vision. Default frequency is 600Hz PWM and frequency can be adjustable by factory setting.

Key Features

  • 12-36V constant voltage KNX Dimmer, 5A per channel, 4 channels ouput
  • To dim and switch single color LED lighting
  • Dimming range from 0%-100%
  • Default frequency is 600Hz PWM and frequency can be adjustable by factory setting
  • Support group, scene and sequence
  • Compatible with KNX system
Specifications Video User Manual Related Products
