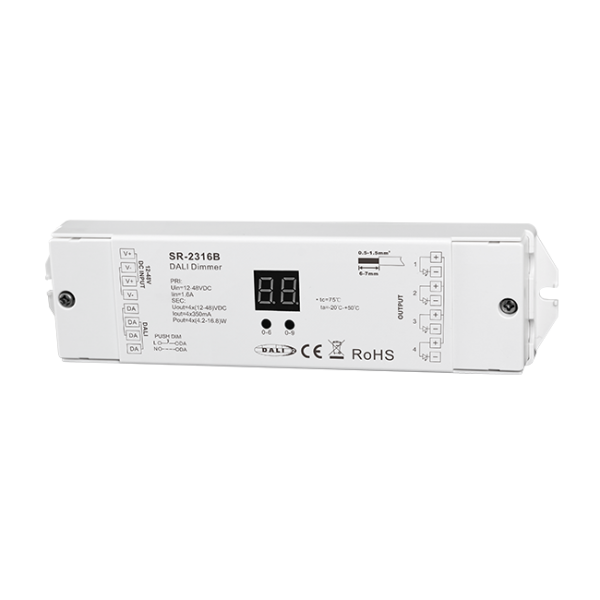

- Constant Current DALI Dimmer SR-2316B
The DALI Dimmer SR-2316B is a constant current dimming controller with 4 channel, 0.35A per channel output, which complies to standard DALI protocol with 1 DALI address to control 4 channels synchronously. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. 1 DALI address is available for 4 channels to work synchronously. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human's vision. The DALI dimmer can not only be compatible with DALI masters, but also push switch to get dim and switch functions under the situation without DALI signal.
Key Features
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2316B | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2316B User Manual
