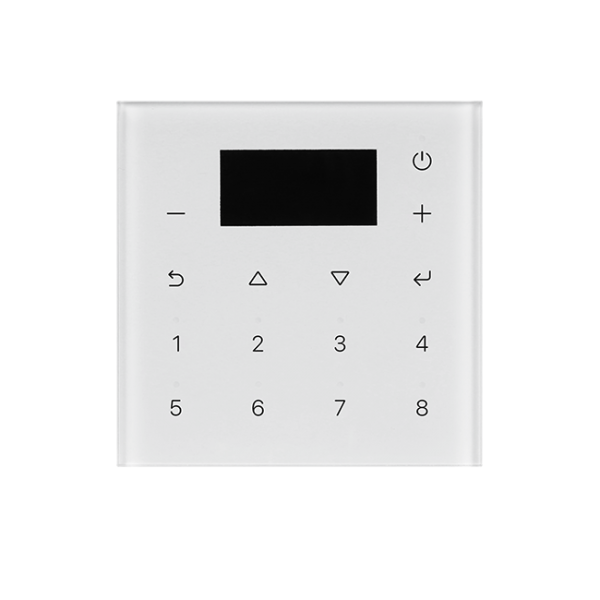

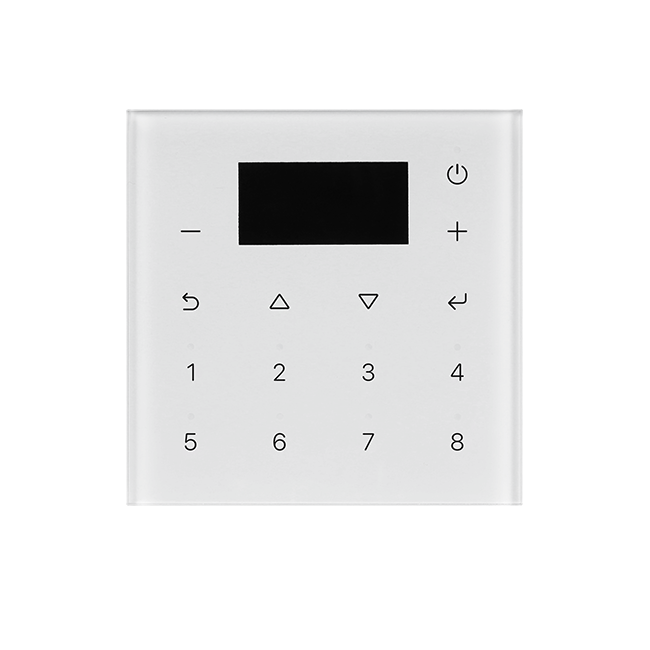

The Casambi Touch Switch + DMX512 Master Controller 2-in-1 combines a sleek touch panel with advanced control features. It supports up to 512 DMX channels, enabling seamless control over DMX decoders. With the ability to configure up to 16 groups, 8 scenes, and 24 time schedules per group, it offers versatile control for any lighting setup. Additionally, the panel functions as a wireless Casambi wall switch, providing effortless Casambi network control. Supporting various DMX loads and Casambi luminaires such as Dim, CCT, RGB, RGBW, and RGB+CCT, the panel is highly adaptable. Users can easily configure 8 buttons through the Casambi app for lighting control. Both DMX512 and Casambi modes are available, selectable with a long press of the on/off button. Backed by a 5-year warranty, this touch panel ensures reliable performance for years to come.
Key Features
• The touch panel is a master controller designed to control the DMX decoders.
• It can control 512 DMX channels.
• It enables to configure max. 16 groups or zones with max. 8 scenes, 24 time schedules and 8 cycle schedules configured to each group.
• The touch panel is also a wireless Casambi wall switch to control Casambi network wirelessly.
• The panel supports 5 different types of DMX load & Casambi luminaire: Dim, CCT, RGB, RGBW, RGB+CCT.
• 8 buttons can be configured through Casambi app to bind luminaires, groups, scenes, etc.
• DMX512 control mode and Casambi control mode can be selected by long pressing the on/off button.
• 5 years warranty
Download Center
To know further details of this product, please download the following user manual.
SR-CS2847 User Manual
