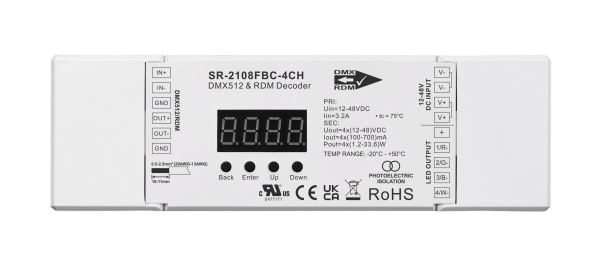

4CH Constant Current CC DMX & RDM Decoder SR-2108FBC-4CH

This DMX decoder SR-2108FBC-4CH offers both DMX decoder and master modes, with RDM (Remote Device Management) functionality. It features a digital display that shows data directly, making it easy to set and view the DMX address. The device provides 4 constant current output channels with a common anode design, and each channel's output current can be adjusted between 100-700mA, with a 10mA increment, to suit various load requirements. It supports both 8-bit and 16-bit control precision, offering flexible configuration options. Additionally, the output dimming curve gamma value can be set between 0.1 and 9.9, allowing adjustment for different light sources.

The decoder supports customizable DMX personality settings, and the DMX address can be configured through either automatic addressing or manual setting for ease of onsite adjustment. The startup behavior can be configured via RDM, ensuring it meets specific application requirements. The DMX signal input and output are isolated and protected against surges, enhancing the device’s reliability. With amplitude/CCR dimming, it ensures smooth, deep dimming without flicker, making it ideal for high-performance lighting applications.

Main Features:

• DMX decoder & master mode, RDM function
• Digital display to show data directly, easily to set and show DMX address
• Total 4 constant current output channels, common anode.
• 100-700mA output current settable of each channel with 10mA increment
• 8/16 bit settable
• Output dimming curve gamma value from 0.1 ~ 9.9 settable
• DMX personality can be set
• Auto-addressing/maunal setting address function
• Startup behavior can be set via RDM
• DMX signal input & output are isolated, anti-surge protection
• Amplitude/CCR dimming, smooth and deep dimming, flicker free
