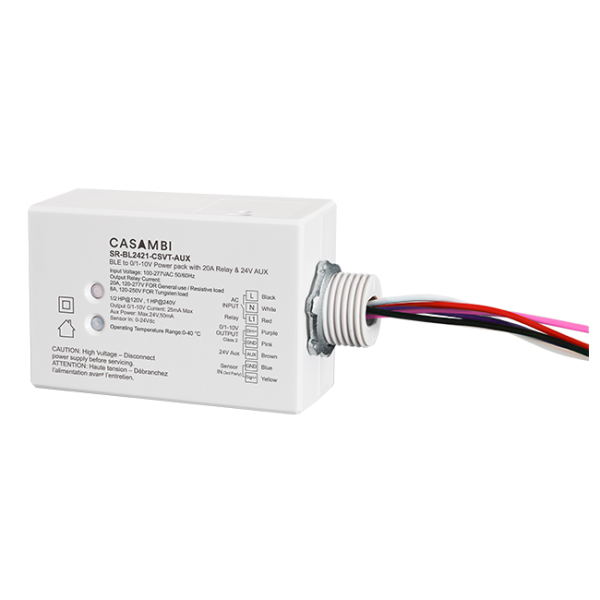

Casambi to 0/1-10V Power Pack with 20A Relay & 24V Aux SR-BL2421-CSVT-AUX

The Casambi to 0/1-10V Power Pack with 20A Relay and 24V Auxiliary Power Output integrates seamlessly into the Casambi mesh network, enabling wireless control of 0-10V loads. It features a built-in 25mA 0-10V signal output, a 20A relay, and a 24V, 50mA auxiliary power output which can power Casambi or third-party sensors. The device supports third-party sensor inputs for logic signal-based control, and all devices on the 0-10V line can be managed via the Casambi app. With a typical indoor wireless range of 50 meters, this device is UL listed, plenum-rated, and features IP20 waterproof protection. It is easily controlled by the Casambi app, switches, sensors, and kinetic switches, and comes with a 5-year warranty.

Key Features

•Casambi to 0-10V signal converter, Casambi mesh network

•Built-in 25mA 0-10V signal output, with 20A relay, enables to dim to off a 0-10V driver.

•Built-in Sensor input, allow to using 3rd party sensor in logic signal to control the power pack/0-10V Load.

•With a 24V auxiliary power output: Max. 24V, 50mA, which can be used as a source of current to power a 24V DC input Casambi sensor or a 3rd party PWM sensor.

•Mesh network, which has a much longer control distance, transmits received signals to neighboring devices

•All devices on 0-10V line are broadcast controlled by Casambi App

•Can be wirelessly controlled by Casambi app, Casambi switches, kinetic switches and Casambi sensors

•In typical indoor environment, the range for wireless communication is about 50 meters. Actual range is dependent on field installation

•UL listed, Category: PAZX (Management Equipment, Energy). UL 2043 Plenum Rated

•IPEX antenna

•Waterproof grade: IP20

•5 years warranty
