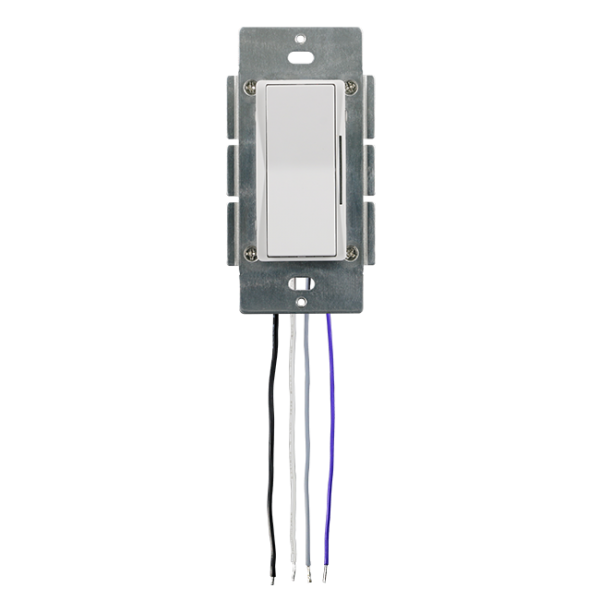

The Casambi Dimmer Wallstation with 0-10V output provides seamless control of lighting through the Casambi network. Powered by 100-277VAC, it features a built-in 20mA signal output and offers customizable button functions via the Casambi app to control individual luminaires, groups, scenes, or entire networks. Designed to fit in a standard wall box, it utilizes a mesh network to extend control range, with a typical indoor range of over 50 meters line of sight. Compatible with Casambi’s BLE drivers, controllers, and sensors, it supports global 2.4 GHz operation and is UL listed with IP20 waterproof rating, ensuring reliable performance for years.
Key Features
• Dimmer Wallstation with 0-10V output based on Casambi network
• 100-277VAC powered, built-in 20mA signal output
• Button function can be configured by Casambi app to control a luminaire, a group, an element, a scene, whole network, etc
• Mounted in standard wall box
• Mesh network for further control distance, receivers can transmit signal to each other
• 2.4 GHz global operation
• Typical mesh range is over 50 meters line of sight for indoor environment
• Standard size, compatible with existing US size frame
• Working with our BLE driver, controller, signal converter, sensor series product
• UL listed, UL 2043 Plenum Rated
• IPEX antenna
• Waterproof grade: IP20
• 5 years warranty
