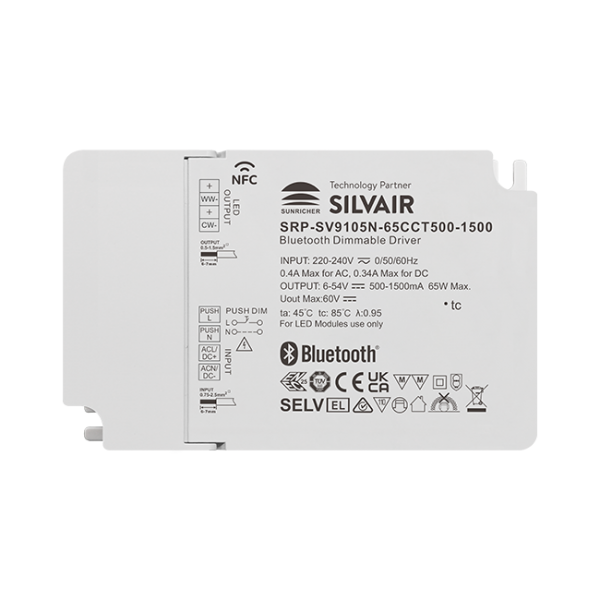

65W 2CH BLE NFC Enabled LED Driver (Constant Current) SRP-SV9105N-65CCT500-1500

SRP-SV9105N-65CCT500-1500 is a plastic casing 65W Bluetooth NFC programmable LED driver, enabled by Silvair technology. It is designed with 2 channels constant current output with adjustable current from 500mA to 1500mA, which enables it to be suitable for LED lights with different current. It is designed with 220-240VAC input. Power factor of the driver can be over 0.95 and efficiency is higher than 75%. It enables smooth and deep dimming to 0.01% without flickering and buzzing noise.

Key Features

• Bluetooth NFC driver, Bluetooth® mesh network
• Dimmable LED driver. Max. output power 65W
• 500-1500mA current selectable via NFC program tool. Min. current gear lower to 0.1mA
• Dimming curve/Power on state/Soft start/Soft off via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• PUSH DIM function enabled
• Able to On/Off and control LED lighting luminaries‘ brightness and color temperature
• Amplitude/CCR dimming, smooth and deep dimming
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation.
• On-board antenna
• Waterproof grade: IP20
• 5 years warranty
