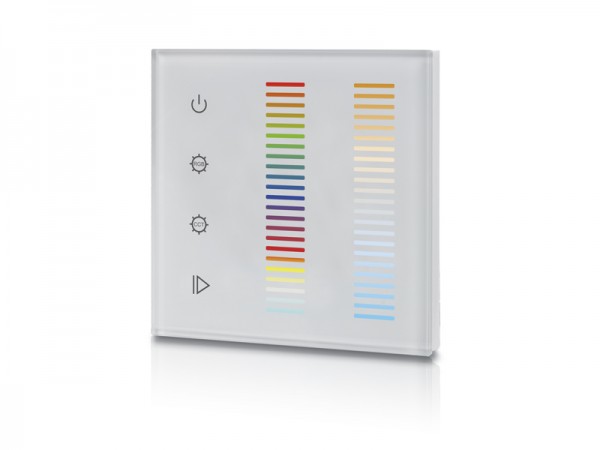

- 5 Channel Dual Touch Sliders RGB+CCT DMX LED Controller SR-2834DMX-5C
SR-2834DMX-5C is a 5 channel full touch DMX LED controller designed with dual touch sliders which offer fast and accurate RGB color tone adjustment for RGB LED lighting and color temperature adjustment for tunable white LED lighting (warm white and cool white). Designed with dual touch sliders, one for RGB color tone adjustment and the other for CCT adjustment, the touch controller can control RGB color and CCT respectively without having to switch. RGB channels' brightness and dual white channels' brightness can be adjustable respectively by keys, thus RGB channels and dual color channels can be controlled separately without any confusion. Each controller has 5 DMX channels output to control 1 zone of RGB+CCT LED lighting and up to 3 different colors or scenes can be saved for each zone. 10 built-in color changing effects are available with pause function. LED indicators for back lighting enable users to find the controller easily even in the dark. Standard European size and American size are optional.
Key Features
Part No. | Operation Voltage | Output | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2834DMX-5C | 12-24VDC/100-230VAC | DMX Signal | 86*86*29.1 | RF Wireless |
SR-2834DMX-5C (US) | 12-24VDC/100-230VAC | DMX Signal | 75*120*29.5 | RF Wireless |
Product Dimension for SR-2834DMX-5C
Product Dimension for SR-2834DMX-5C (US)
Installation Diagram for SR-2834DMX-5C
Installation Diagram for SR-2834DMX-5C (US)
Controller Wiring Diagram for SR-2834DMX-5C
Controller Wiring Diagram for SR-2834DMX-5C (US)
Download Center
To know further details of this product, please download the following user manual.
SR-2834DMX-5C User Manual
SR-2834DMX-5C (US) User Manual
