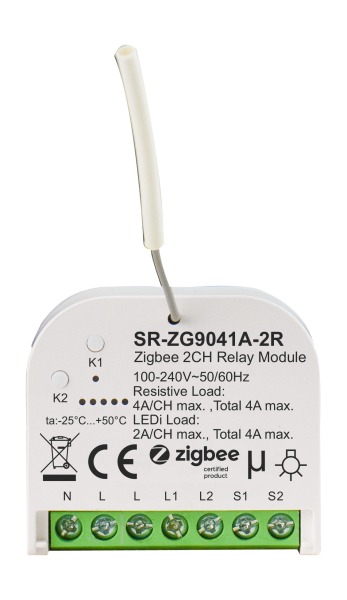

This 2-gang ZigBee in-wall switch (ZigBee 3.0) offers dual-function mode—relay or curtain controller—configurable via manual setup or Azoula app. It supports independent control of two channels, Touchlink pairing, and binding with up to 20 ZigBee Green Power switches. Compatible with various push button types, it features energy metering, overload protection, and a compact design for easy installation in standard wall boxes.
Key Features
• 2-gang ZigBee in-wall switch based on latest ZigBee 3.0 protocol
• Device type can change between 2 channels relay and curtain controller by manual way or Azoula APP
• Enables to control ON/OFF of connected load
• ZigBee device with 2 endpoints which can be controlled separately
• ZigBee end device that supports Touchlink commissioning
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Can be controlled by universal single wire push switch, 2 channels can be controlled separately by 2 switches
• Compatible with different push button types, such as momentary switches and rocker
• Active power and energy metering functionality
• Mini Size, Easy to be installed into a standard wall box
• Over load protection
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9041A-2R User Manual
