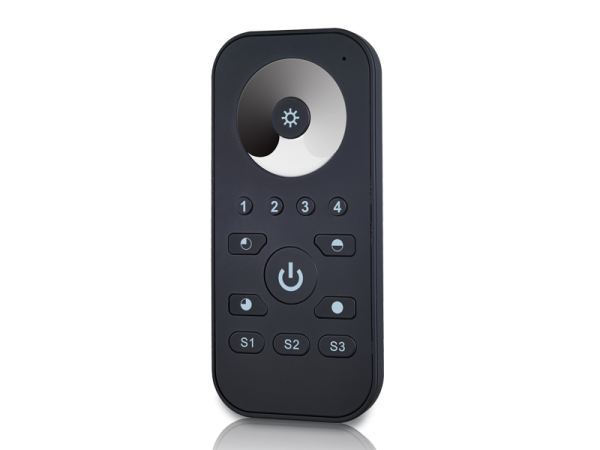

- Single Color 4 Groups ZigBee Remote Controller SR-ZG2819S-DIM
SR-ZG2819S-DIM is a single color ZigBee remote controller that enables switch and dimming control and works with a ZigBee gateway/coordinator, it shall be added to a ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices. This ZigBee remote supports 4 groups for binding max. 30 lighting devices and enables to control single color ZigBee lighting devices. It is a low cost ZigBee remote powered by 3 AAA batteries due to robust, reliable ZigBee PRO networking. With magnet bracket, the remote is easy to fasten.
The ZigBee remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard.
The ZigBee remote controller allows not only independent control of individual group by group keys but also synchronous control of all groups by All On and All Off keys. 4 scenes can be saved and recalled for each group.
The ZigBee remote supports Touchlink commissioning to bind directly to a lighting device without a zigbee hub or Touchlink after the remote and device are both added to the zigbee hub network.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-ZG2819S-DIM | 4.5VDC (3 AAA batteries) | 2.4GHz | 55*120*17 | / |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-ZG9101FA-DIM | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 53.4*166*23 |
SR-ZG9101FA3-DIM | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 53.4*166*23 |
SR-ZG9101FA7-DIM | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 53.4*166*23 |
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG2819S-DIM User Manual
