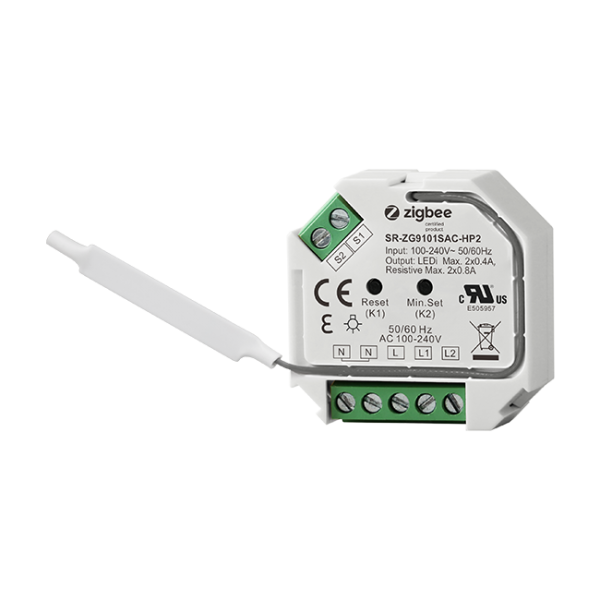

This compact ZigBee 3.0 dual-channel AC phase cut dimmer enables ON/OFF and smooth dimming control for triac dimmable LED lights or drivers. Featuring 100–240VAC wide input/output, independent dual channels, push switch control, and compatibility with universal ZigBee gateways, it delivers reliable, safe, and intelligent lighting management with easy installation into standard wall boxes.
Key Features
• ZigBee 2 channels AC phase cut dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads and capacitive loads
• 2 channels output, 2 zigbee endpoints, 2 channels can be controlled individually
• Input and Output with Screw Terminals, Safe and Reliable
• Both leading edge version and trailing edge version are available for choosing, default factory setting is trailing edge
• Enables to control ON/OFF and light intensity of connected triac dimmable led light or led driver
• Compatible with universal ZigBee gateway that supports multiple endpoints
• Can be controlled by universal single wire push switch, 2 channels can be controlled separately by 2 switches

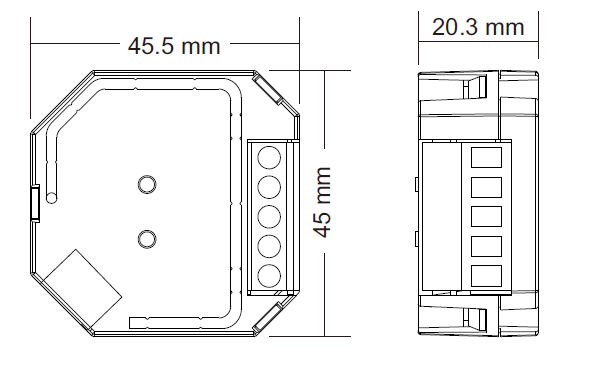

• Mini Size, Easy to be Installed into a standard 86*86mm wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
