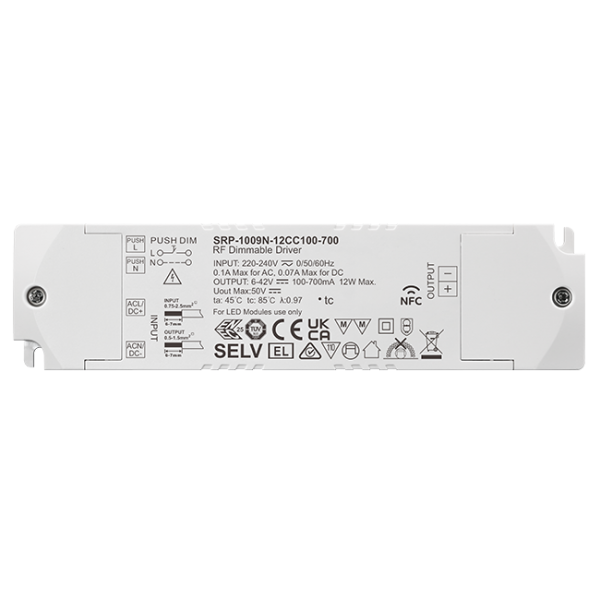

12W RF NFC Enabled LED Driver (Constant Current) SRP-1009N-12CC100-700

Product Description

This 12W NFC programmable RF LED Driver can be programmed with NFC programming APP or tool, the output current can be configured with 0.1mA stepping between 100-700mA, which ensures high current accuracy and helps to reduce stocks. The driver is endowed with high power factor and efficiency. This dimmable driver has maximum output power of 12W. With Class Ⅱ power supply and full isolated plastic case, this driver can switch and dim LED lighting fixtures. It features flicker free and deep dimming to 0.01%. Besides, it has error report function. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.

Key Features

• Dimmable LED driver. Max. output power 15W
• 100-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• Dimming curves/Target current/Power-on behavior settings via NFC program tool
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• Radio Frequency: Default 869.5Mhz/916.5Mhz (1009 Version), Available 868Mhz/434Mhz(2504 Version)
• To switch and dim LED lighting fixtures
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with a variety of RF remotes
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
