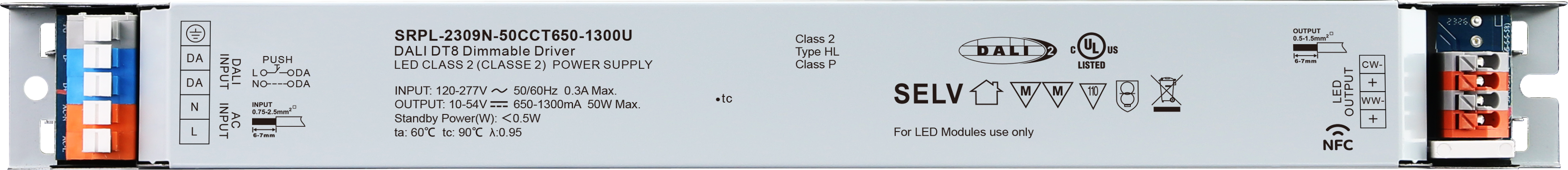

SRPL-2309N-50CCT650-1300U is a DALI-2 certified linear metal casing 50W dimmable LED driver. It is designed with 2 channels constant current output with adjustable current from 650mA to 1300mA, which enables it to be suitable for LED lights with different current. It is designed with 120-277VAC input. Power factor of the driver can be over 0.95 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.01% without flickering and buzzing noise. One DALI address for two channels output can be manually assigned via "SR NFC Tool" APP or automatically assigned by DALI masters. Complying with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209, this DALI driver is compatible with DALI-2 certified application controllers and control devices.
Key Features
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver with linear metal housing. Max. output power 50W
• 650-1300mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• Class Ⅱ power supply, isolated design
• High power factor and efficiency
• To switch and dim LED lighting luminaries, enable tunable white control
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT8 commands
• DALI-251/252/253 Enabled
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
