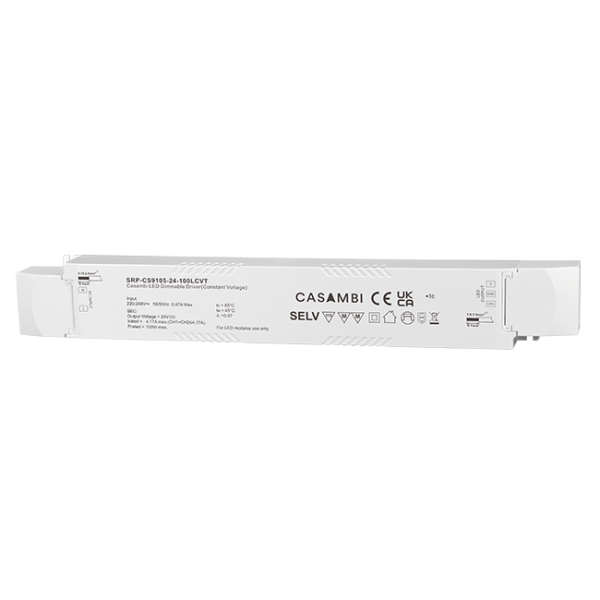

SRP-CS9105-24-100LCVT is a high-performance 100W Casambi Bluetooth-enabled constant voltage LED driver, 2 channel output. Featuring a 24VDC constant voltage output with a 220-240VAC input, this driver ensures a power factor greater than 0.97 and an efficiency of over 93%. With its advanced Casambi technology, the driver supports smooth, flicker-free dimming down to 0.01% without any buzzing noise. It is equipped with built-in active Power Factor Correction (PFC), over-temperature, over-load, and over-voltage protection, making it a durable and safe solution for LED lighting applications.
Key Features
• Casambi dimmable LED driver
• Class II power supply, full isolated plastic case, built-in active PFC function
• PF > 0.97, Efficiency > 93%, standby power < 0.5W
• Can be controlled by both Casambi App and Casambi wall switches
• Easy commissioning with Casambi App
• On-board antenna
• Over-temperature/Over-load/ Over-voltage protection
• Waterproof grade: IP20
• 5 Years Warranty
Specifications
| Part No. | Input Voltage | Output | Output Power | Output type | Dimension (mm) |
|---|---|---|---|---|---|
| SRP-CS9105-24-100LCVT | 220-240VAC | 2 Channels, 24V DC |
100W max.
| Constant Voltage | 306.6*43*30 (L*W*H) |
Wiring Diagram
Product Dimension
Download Center
To know further details of this product, please download the following user manual.
SRP-CS9105-24-100LCVT User Manual
