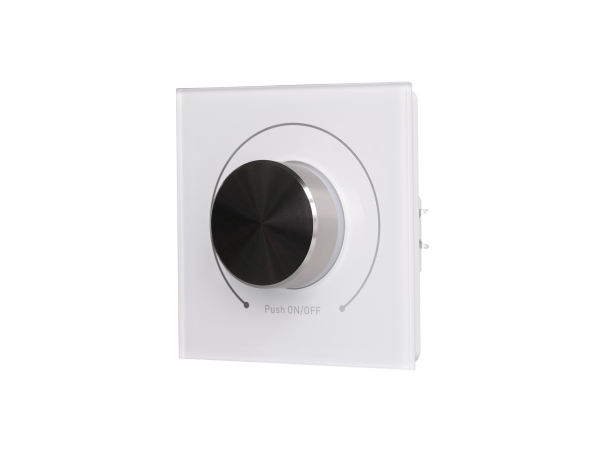

SR-2202N-1-10V-B is a single color LED controller with 1-10v signal output and designed with sleek compact appearance. The rotary dimmer switch adopts popular and mature 1-10V signal control which offers both switch and smooth brightness dimming functions by clicking and rotating the knob. Smooth dimming range from 0.1%-100% without any flickering can be very comfortable for human eyes. Compatible with SR-2001 series 0/1-10V signal receivers that are available in both constant voltage and constant current version, the rotary dimmer switch can control different types of LED lightings. The rotary switch is powered directly by 100-240VAC mains and no extra power supply required. The controller can be compatible with existing standard size frame from Jung, Berker, Gira, Merten etc. It is easy to install the wall switch into existing standard size wall boxes.
Key Features
