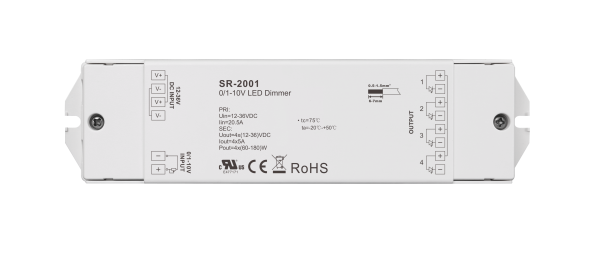

The SR-2001 is a constant voltage 0/1-10V LED dimmer with 4 channel, maximum 5A per channel output and available in 12VDC, 24VDC and 36VDC output, which receives standard 1-10V dimming signal and outputs PWM signal. The 1-10V dimmer is designed with 1 channel 1-10V input and 4 channel PWM output. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering.
Key Features
- Constant voltage 0/1-10V LED dimmer with 4 channel, maximum 5A per channel output and available in 12VDC, 24VDC and 36VDC output
- Analog dim driver, receives standard 1-10V dim signal input
- 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes
- 1 channel 1-10V input and 4 channel PWM output
- 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering
- To work with power repeater to expand output unlimitedly
Download Center
To know further details of this product, please download the following user manual.
SR-2001 User Manual
