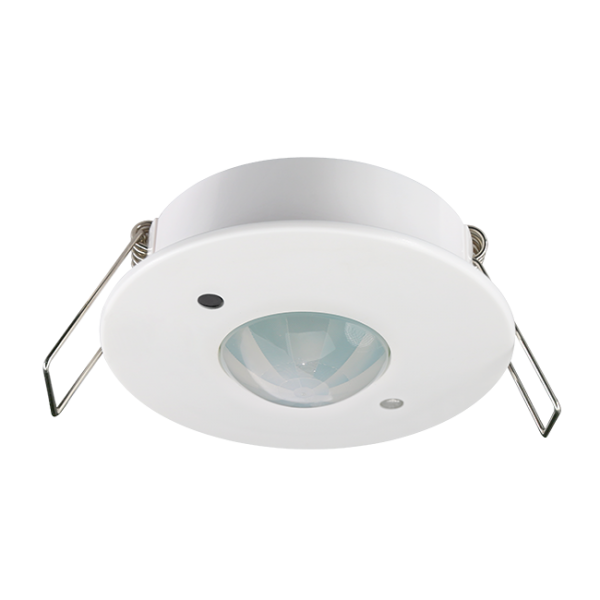

This ceiling-mounted Bluetooth® mesh 0-10V sensor controller integrates PIR sensing with daylight harvesting for intelligent lighting control. It features a built-in 20mA 0-10V signal output and supports extended mesh networking, enabling broadcast control of all devices on the 0-10V line via mobile application. Compatible with kinetic energy switches and EnOcean models EWSSB and EWSDB, it offers a 20–25m wireless range in typical indoor environments. Equipped with an onboard antenna, magnetic reset function, IP20 protection, and 5-year warranty.
Features
• 0-10V BLE ceiling mounted sensor controller, Bluetooth® mesh network
• PIR sensing with daylight harvesting function
• Built-in 20mA 0-10V signal output
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on 0-10V line are broadcast controlled by mobile application
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical indoor environment, the range for wireless communication is 20m to 25m. Actual range is dependent on field installation.
• On-board antenna
• Available with Magnetic reset (Touch the top part of sensor for 5 seconds)
• Waterproof grade: IP20
• 5 years warranty
