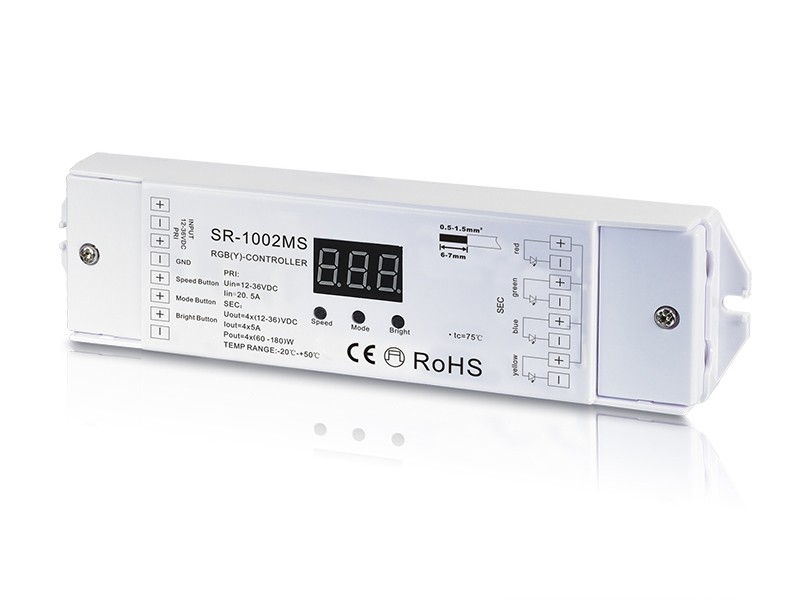

SR-1002MS is a manual RGB/RGBY LED controller which offers brightness adjustment, built-in color changing modes and changing speed adjustment. 256 level grey scale adjustment per RGB/RGBY enables the manual controller to achieve full color changing without any flickering. Built-in 9 fantastic changing patterns can create fancy lighting effects. Changing speed is adjustable and pause function is available to stop at a single color. External controllers can be connected with the this manual controller to simplify the operation.
Key Features
- 256 levels of Grey Scale per RGB/RGBY, even and smooth for full-color changes without any flash
- 9 fantastic moes such as color smooth, color skipping effects etc
- Can stop at a single color with pause function, can adjust the changing speed and brightness
- To work with power repeater to expand output unlimitedly
- Can connect with other external controllers such as external switches
| Part No. | Input Voltage | Output Current | Output Power | Ambient Temperature | Max. Casing Temperature | Dimension (mm) | Operation Method |
|---|
| SR-1002MS | 12-36VDC | 4CH, 5A/CH | 240-720W | -20 to +50 | 75 | 178.9*45.5*18.6 | Manual/Display |
|---|

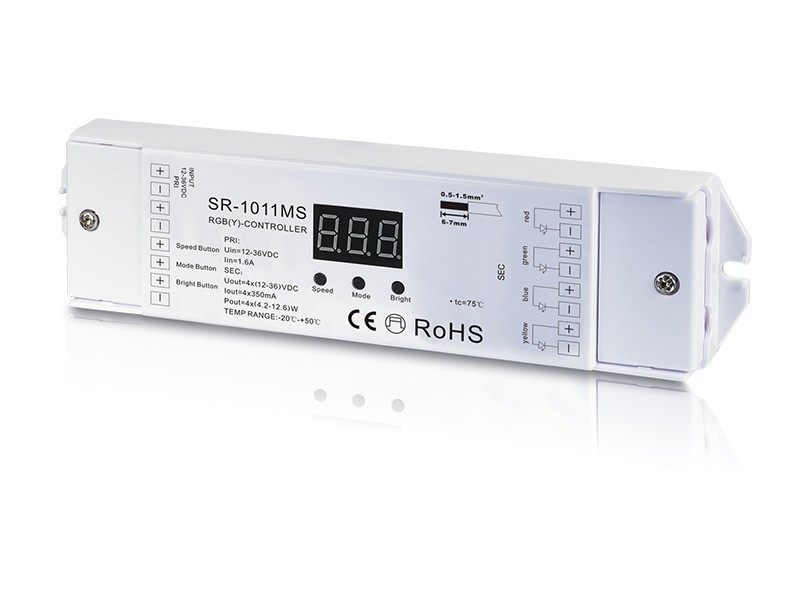

| SR-1011MS | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | -20 to +50 | 75 | 178.9*45.5*18.6 | Manual/Display |
|---|
| SR-1021MS | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | -20 to +50 | 75 | 178.9*45.5*18.6 | Manual/Display |
|---|

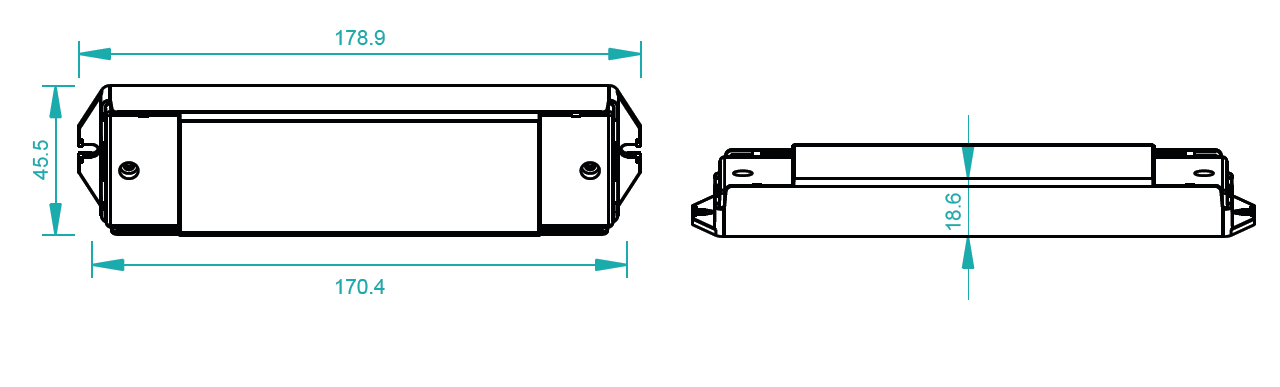

Product Dimension

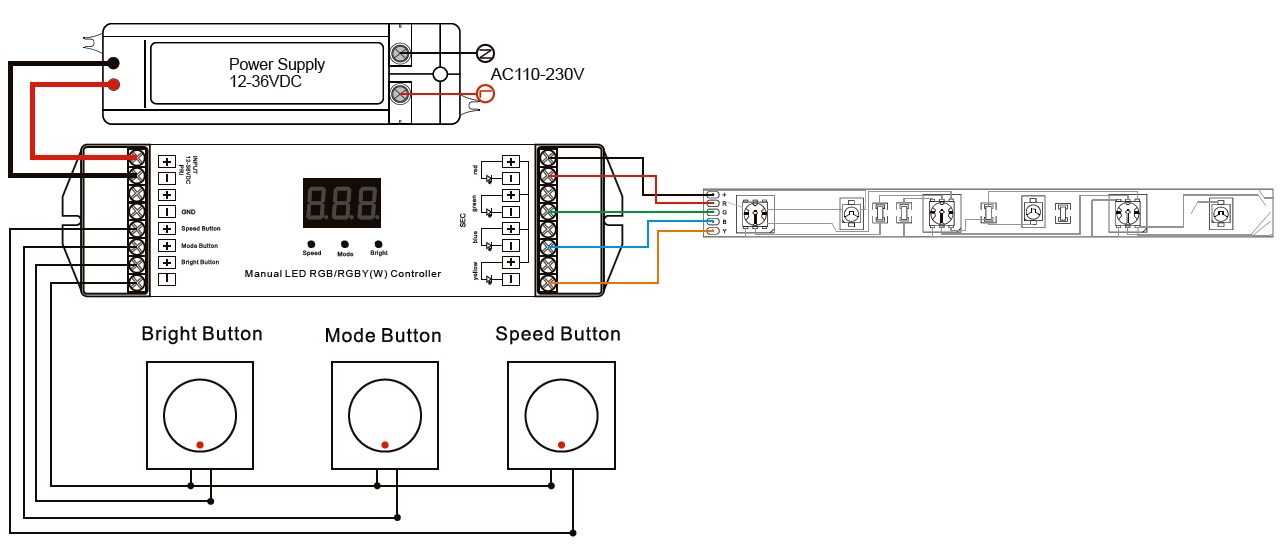

Wiring Diagram for Single Unit

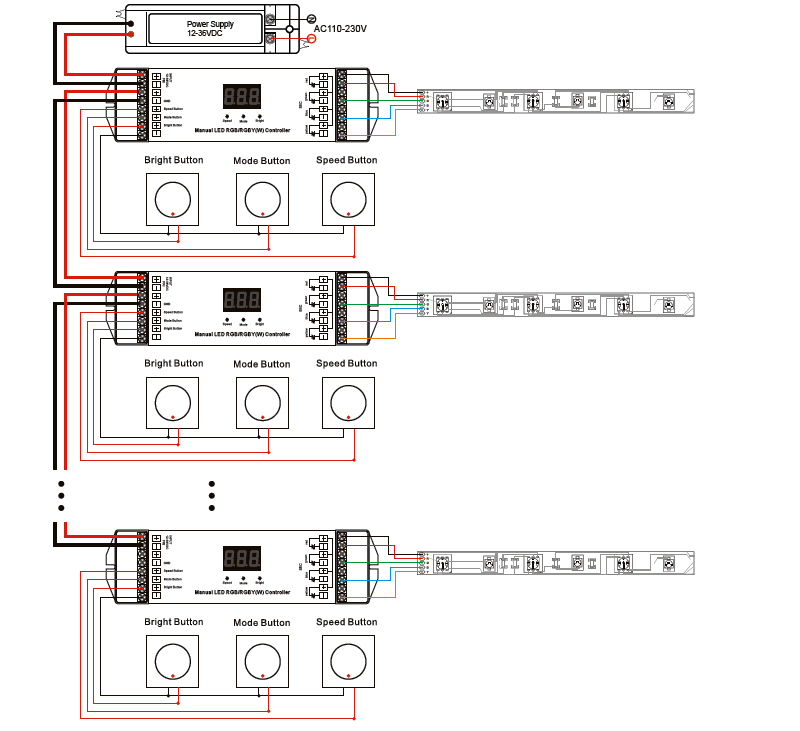

Wiring Diagram for Multiple Units
Download Center
To know further details of this product, please download the following user manual.
SR-1002MS User Manual
