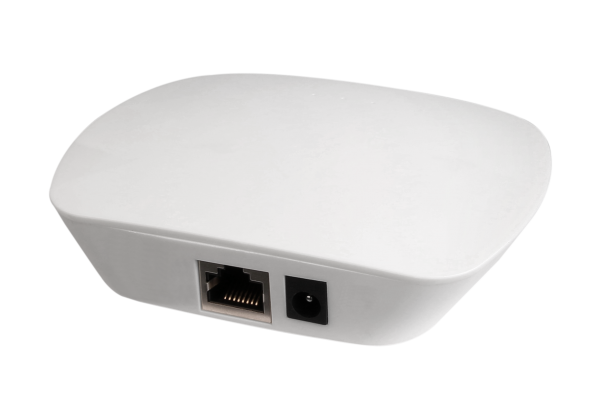

The SR-2818WiN is a compact WiFi-RF converter designed to convert WiFi signal to RF signal and be compatible with SR-1009 series receivers, which enables the RF controllers to be WiFi controlled by APP installed on IOS and Android mobile devices. It receives WiFi signal from the mobile devices and converts it to RF signal and send to the receiver. This converter greatly facilitates users to simplify the control, they do not have to find the remote controls everywhere, just a mobile phone is enough. The WiFi-RF converter can be compatible with SR-1009 series receivers to control single color, dual color, RGB and RGBW LED lighting. Free APP is available from APP store or Sunricher website.
Key Features
- Converts WiFi signal to RF
- Compatible with SR-1009 series receivers
- More convenient and flexible control
- Single or multiple receivers can be controlled by each control system
- Free APP available from APP store or Sunricher website
- Humanized APP interface, easy operation
SR-2818WiN Specifications
| Part No. | Operation Voltage | Output | Dimension (mm) |
|---|
| SR-2818WiN | 12VDC | RF signal | 85*110*24 |
|---|
| SR-2818WiN-D | 12VDC | RF signal/DMX signal | 85*110*24 |
|---|
Compatible Receiver
| Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
|---|
| SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
|---|
| SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
|---|
| SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
|---|
| SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
|---|
Product Dimension
Wiring Diagram
