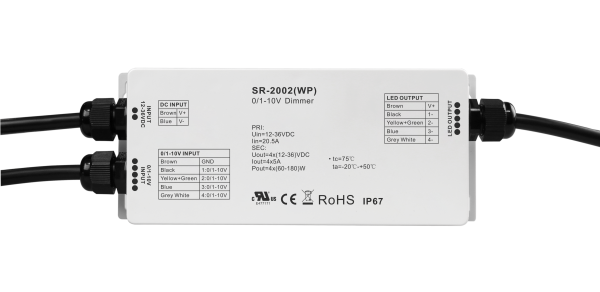

The SR-2002(WP) series is a waterproof 0/1-10V LED dimmer which receives standard 1-10V dimming signal and outputs PWM signal with IP67 rating. The 0/1-10V dimmer is designed with 4 channel 0/1-10V input and 4 channel PWM output and available in constant voltage. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering. The waterproof LED dimmer can be used in outdoor and damp environment.
Key Features
- With 4 Channels 0/1-10V signal Input, 4 channels PWM Output
- Analog dim driver, receive standard 0/1-10V dim signal input
- 0-100% dimming range via logarithmic characteristic , perfect for human's vision
- 256 levels of Grey scales, smoothly without any flash
- To work with power repeater to expand output unlimitedly
- Can coordinate with 0/1-10V regulator or 0/1-10V dimmer to do analog dimming ,smooth dimming curve, be in direct proportion to voltage curve of regular.
- Waterproof grade: IP67
Download Center
To know further details of this product, please download the following user manual.
SR-2002(WP) User Manual
