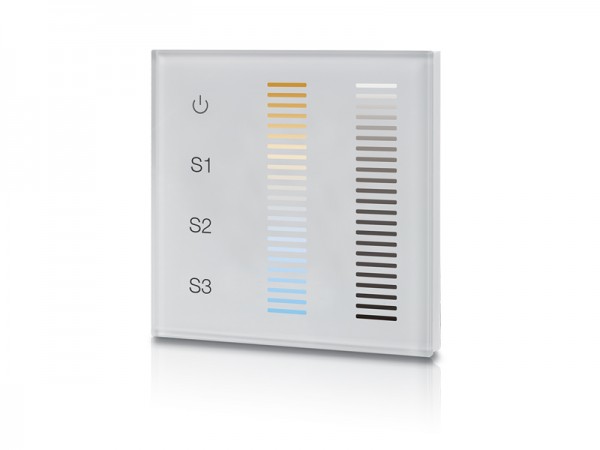

- Tunable White DMX Touch Panel SR-2834BDMX
SR-2834BDMX is a full touch tunable white DMX LED controller designed with double touch sliders which offer fast and accurate color temperature adjustment for warm white and cool white LEDs and brightness dimming. Designed with double touch sliders, one for CCT adjustment and the other for brightness adjustment, the touch controller can adjust color temperature and brightness respectively without having to switch. Each controller has two DMX channels to control 1 zone of tunable white LED lighting and up to 3 different kelvin or scenes can be saved for each zone. Independent smooth dimming with 256 level brightness adjustment enables the LED controller to achieve millions of colors. Humanized memory function enables the controller remember the last Kelvin after turn off or cut off. LED indicators for back lighting enable users to find the controller easily even in the dark. Standard European size and US size plate optional.
Key Features
Part No. | Operation Voltage | Output | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2834BDMX | 12-24VDC/100-230VAC | DMX Signal | 86*86*29.1 | RF Wireless |
SR-2834BDMX (US) | 12-24VDC/100-230VAC | DMX Signal | 75*120*29.5 | RF Wireless |
Product Dimension for SR-2834BDMX
Product Dimension for SR-2834BDMX (US)
Installation Diagram for SR-2834BDMX
Installation Diagram for SR-2834BDMX (US)
Controller Wiring Diagram for SR-2834BDMX
Controller Wiring Diagram for SR-2834BDMX (US)
Download Center
To know further details of this product, please download the following user manual.
SR-2834BDMX User Manual
SR-2834BDMX (US) User Manual
