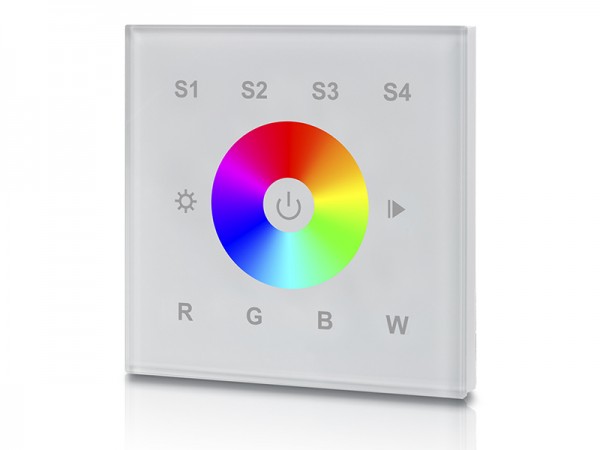

- Touch RGBW Z Wave Secondary Controller SR-ZV9001T-RGBW
SR-ZV9001T-RGBW is a touch control z-wave secondary controller with z-wave Plus enabled for RGBW LED lighting. As a z-wave secondary controller, it can be added to z-wave network and removed from z-wave network by z-wave primary (master) controllers or gateway and control z-wave devices that are added to the network. It supports 2 groups for associations, a lifeline group association to primary (master) controller and a group association to devices, the group association to devices supports maximum 5 Z-wave devices per group. It is a universal z-wave slave which can be compatible with universal z-wave primary controller or gateway. The wireless controller is compatible with RGBW z wave device SR-ZV9103FA-RGBW and different frequencies are available for different countries or areas. The signal transmit distance can be up to 30m. The controller supports group and scene storage and recall functions. The controller is easy to install on the wall and available in standard EU size and US size as well.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-ZV9001T-RGBW-EU | 100-240VAC | 868MHz | 86*86*29.1 | Touch control |
SR-ZV9001T-RGBW-US | 100-240VAC | 908MHz | 75*120*29.1 | Touch control |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-ZV9101FA-RGBW | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 53.4*166*23 |
SR-ZV9101FA3-RGBW | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 53.4*166*23 |
SR-ZV9101FA7-RGBW | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 53.4*166*23 |
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZV9001T-RGBW-EU User Manual
SR-ZV9001T-RGBW-US User Manual
