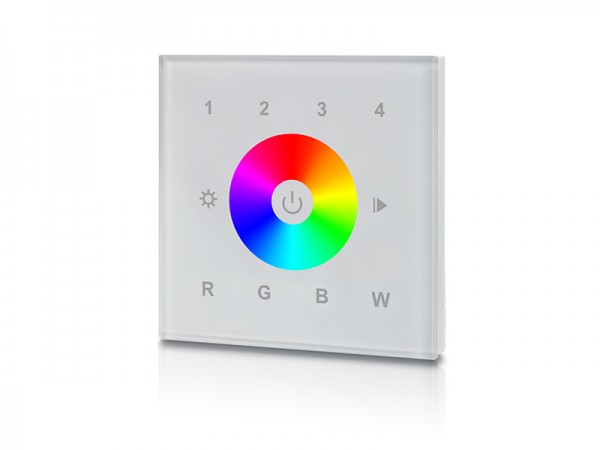

SR-ZV9001T4-RGBW-EU is a touch panel Z-Wave Plus certified wall controller for RGBW LED lighting. As a z-wave secondary controller, it can be added to z-wave network and removed from z-wave network by z-wave primary (master) controllers or gateway and control z-wave devices that are added to the network. It supports 5 groups for associations, a lifeline group association to primary (master) controller and 4 groups association to devices, the groups association to devices support maximum 5 Z-wave devices per group. 20 built-in color changing effects are available with changing speed adjustable. It is a universal z-wave slave which can be compatible with universal z-wave primary controller or gateway. The wireless controller is compatible with RGBW z wave device SR-ZV9103FA-RGBW and different frequencies are available for different countries or areas. The signal transmit distance can be up to 30m. The controller is easy to install on the wall and available in standard EU size.
Key Features
- Z-Wave Plus certified
- Touch Panel RGBW Z-Wave Wall Controller
- Source-routed Mesh Network Architecture
- Each device works as a node
- All Nodes Are Transceivers
- Each Z-wave Network Allows Up to 232 Devices
- Actively route around and circumvent obstacles or radio dead spots
- Wireless Synchronization to Drastically Increase Control Distance
- Devices can communicate to one another by using intermediate nodes
- Added or removed by primary controllers or gateway
- Supports 1 lifeline group association to master controller
- Supports 4 groups association to z-wave devices, maximum 5 devices per group
- 20 built-in color changing effects are available with changing speed adjustable
- Compatible with universal z-wave primary controller or gateway
