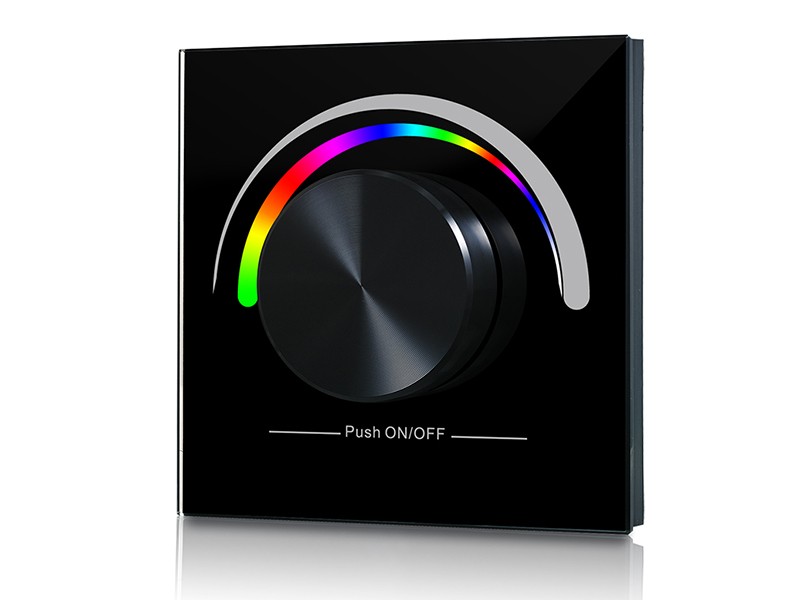

RGB LED controller SR-2805RGB is a rotary knob style controller with wireless RF signal to control RGB LEDs. The rotary knob led controller is designed with both switch and brightness adjustment function. Smooth brightness adjustment from 0.1%-100% without flickering can protect human eyes. The rotary controller can control 1 zone with endless receivers. Accurate and smooth RGB color tone adjustment can be achieved by rotating the knob. The RGB controller is designed with different sizes to be compatible with universal wall mounted junction box.
- Reliable & stable switch and dimming control function, control range ≥20M.
- Battery in the remote is with long life span. It normally can use for 5 years.
- Switch on/off of lightings slowly, without any flash, meet the comfort of human eyes.
- Dimming range 0.1-100%.
- Enable switch from color dimming to adjust RGB colors.
- Use with power repeater to expand the output power unlimitedly.
- Enable to control 1 zones separately, each zone can be set endless receivers, each receiver maximally be controlled by 8 different remotes.
- Rotary adjustment, wall panel

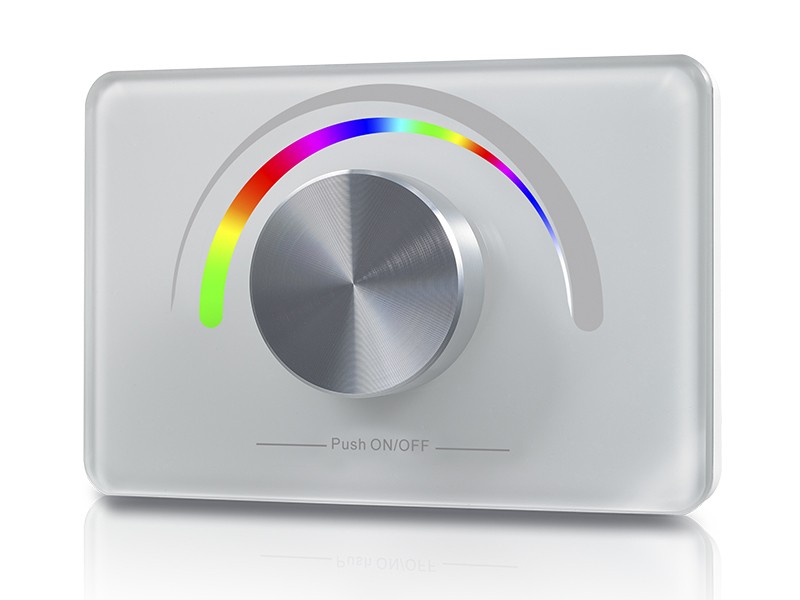

- Italian/Australian, US wall size available
|Part No.||Operation Voltage||Operation Frequency||Dimension (mm)||Remarks|
|Part No.||Input Voltage||Output Current||Output Power||Output type||Dimension (mm)|

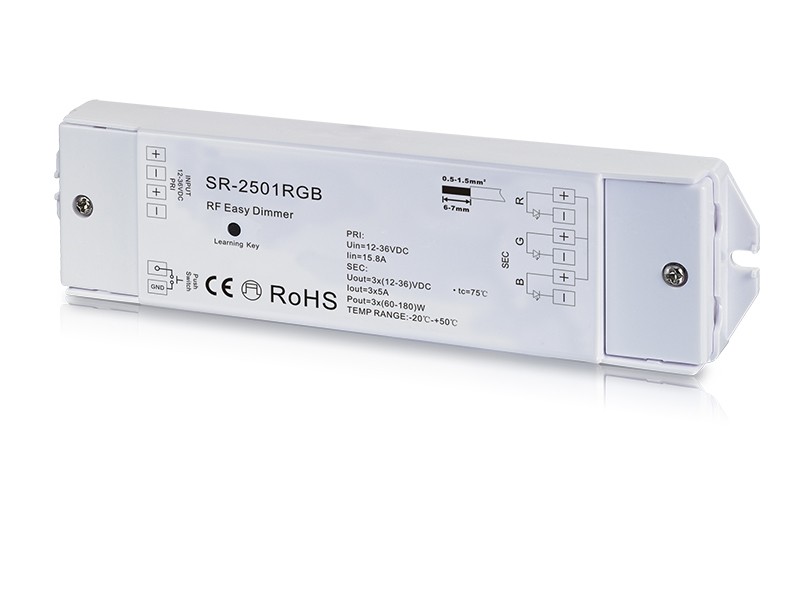

|SR-2501RGB||12-36VDC||3CH, 5A/CH||180-540W||Constant Voltage||46*178*18|
|SR-2501RGBEA||12-36VDC||3CH, 8A/CH||180-864W||Constant Voltage||58*168*28|
|SR-2502RGB||12-36VDC||3CH, 0.35A/CH||12.6-37.8W||Constant Current||46*178*18|
|SR-2503RGB||12-36VDC||3CH, 0.7A/CH||25.2-75.6W||Constant Current||47*178*18|

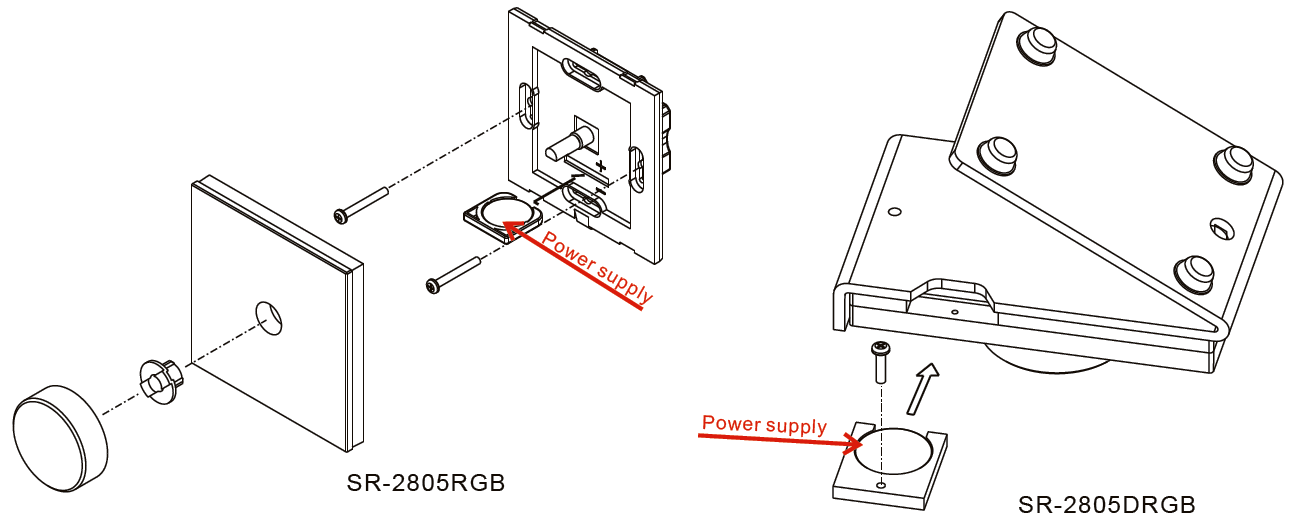

Installation for SR-2805RGB

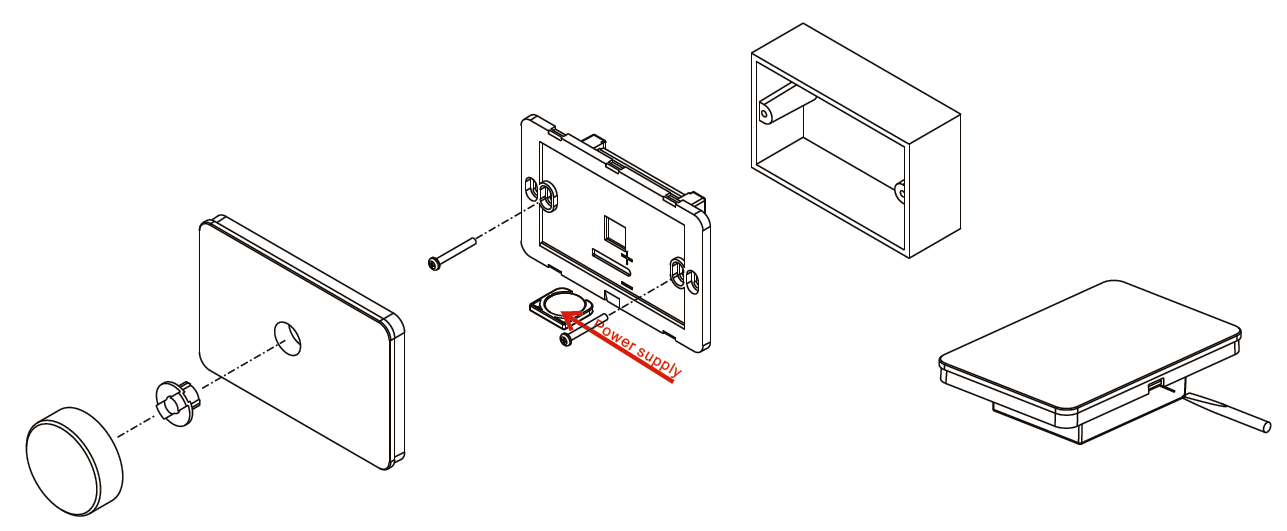

Installation for SR-2805RGBIT

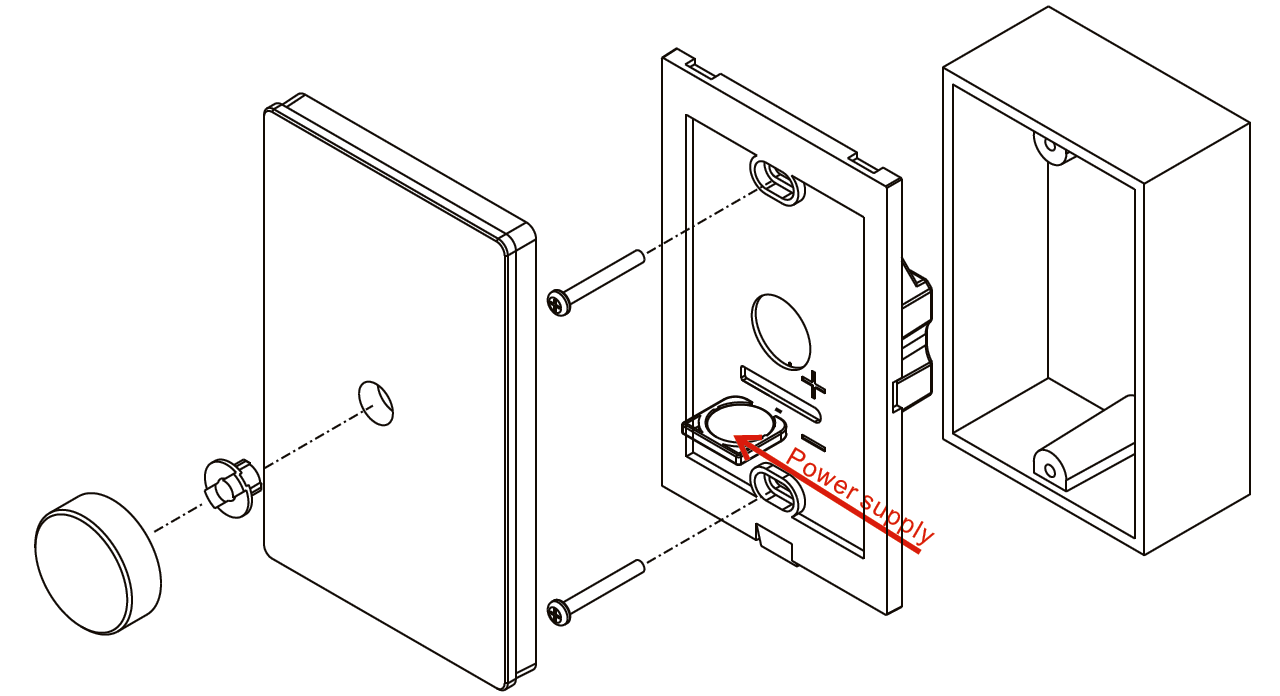

Installation for SR-2805RGBUS
Receiver Wiring Diagram
