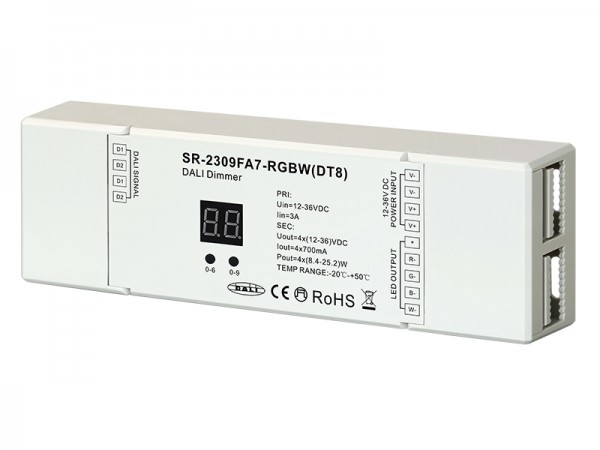

SR-2309FA7-RGBW is a 4 channel constant current 700mA output RGBW DT8 DALI dimmer that complies to the latest IEC 62386-209:2011 standard and supports DT8 device commands. Color control is as defined in the DALI specification for device type 8, color type RGBW or XY coordinates can be preset by factory setting. All output channels of this device is controlled via a single DALI address and it is compatible with universal DALI master controllers that supports DT8 commands. DT8 commands enable easy RGB color adjusting. DALI address can be manually assigned and displayed via digital display. It is configurable via DALI software tool and DALI USB interface.
Key Features
- DALI certified
- TUV CE certified
- RGBW DT8 DALI Dimmer with RGB Color Control
- Complies to the latest IEC 62386-209:2011 standard
- 4 channels constant current 700mA output controlled via a single DALI address
- Control of four PWM outputs R, G, B and W via DALI DT8 color type RGBW.
- Color control as defined in the DALI specification for device type 8, color type RGBW or XY coordinates can be preset by factory setting.
- Compatible with universal DALI master controllers that supports DT8 commands
- DALI address can be manually assigned and displayed via digital display
- Configurable via DALI software tool and DALI USB interface
