- RF Double Touch Slider Dual Color LED Controller SR-2834B

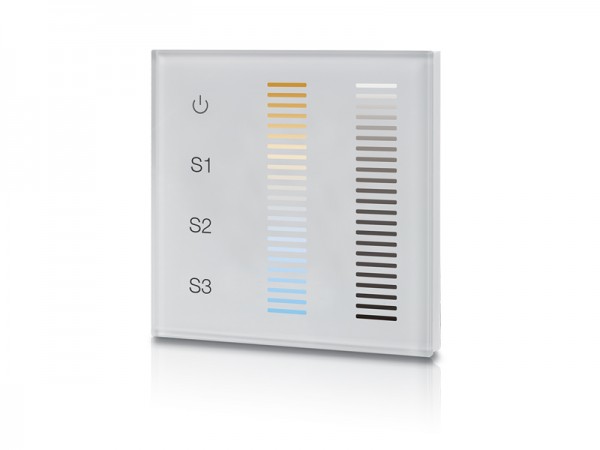

SR-2834B is a full touch dual color LED controller designed with double touch sliders which offer fast and accurate color temperature adjustment for warm white and cold white LEDs and independent brightness dimming of each white. Designed with double touch sliders, one for CCT adjustment and the other for brightness adjustment, the touch controller can adjust color temperature and brightness respectively without having to switch. Each controller can control 1 zone with endless receivers in each zone and up to 3 different kelvin or scenes can be saved for each zone. Independent smooth dimming of each white with 256 level brightness adjustment enables the LED controller to achieve millions of colors. Humanized memory function enables the controller remember the last Kelvin after turn off or cut off. LED indicators for back lighting enable users to find the controller easily even in the dark. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
Function Introduction
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2834B | 12-24VDC/100-230VAC | 434MHz/869.5MHz | 86*86*29.1 | RF Wireless |
SR-2834B (US) | 12-24VDC/100-230VAC | 916.5MHz | 75*120*29.5 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009EA-5C | 12-36VDC | 5CH, 8A/CH | 480-1440W | Constant Voltage | 50*170*29 |
Product Dimension
Installation Diagram

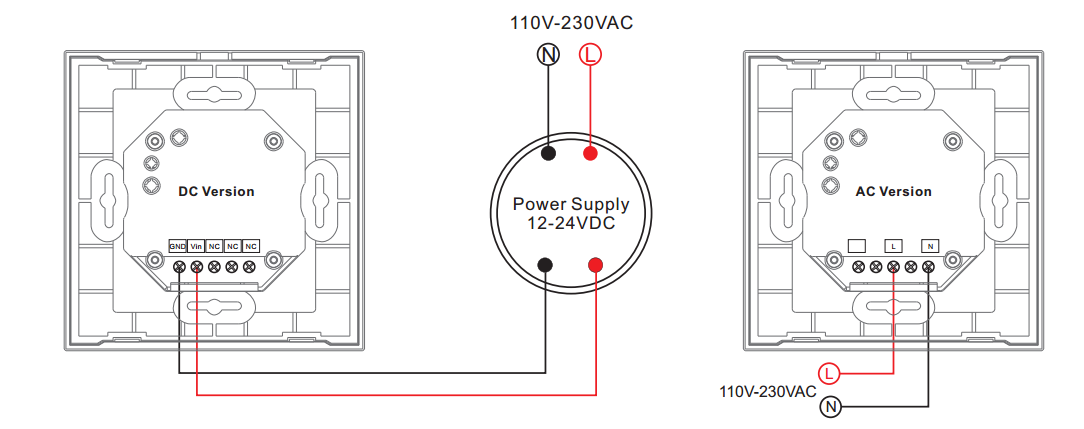

Controller Wiring Diagram
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2834B User Manual
SR-2834B-US User Manual
