- Push Compatible Touch Panel 4 Channels DMX512 Master SR-2206DMX

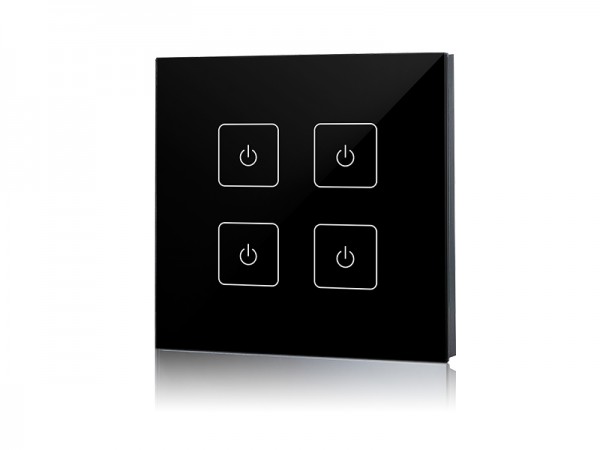

The touch panel DMX master SR-2206DMX is a controller with 4 channels of DMX output. It is designed in accordance with standard DMX protocol and full touch interface with user-friendly interface. Touch sensitive glass panel enable smooth ON/OFF and dimming control. With 256 levels logarithm dimming, each DMX channel offers smooth dimming from 0.1% to 100%. White and black panels are available. The DMX controller can be configured to control 4 selected DMX addresses and two rotary switches on the back are used to set the starting number of the 4 DMX addresses. The starting number is settable from 1-99. The touch keys are designed with back lighting for easy finding in the dark.
It is a push switch compatible DMX controller and 4 DMX channels can be controlled with 4 push buttons to offer smooth switch and dimming functions. Europe size and US size are both available for different areas and easy to be installed into standard size wall boxes.
Key Features
Part No. | Operation Voltage | Output | Dimension (mm) |
---|---|---|---|
SR-2206DMX | 12-24VDC | DMX512 Signal | 86*86*29.1 |
SR-2206DMX(US) | 12-24VDC | DMX512 Signal | 75*120*29.1 |
Product Dimension
Installation Diagram
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2206DMX User Manual
SR-2206DMX(US) User Manual
