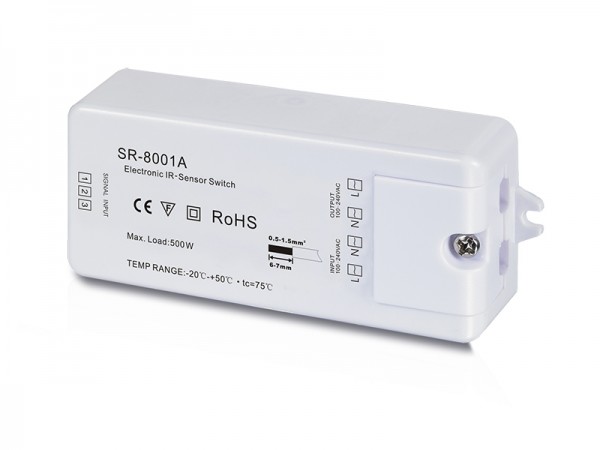

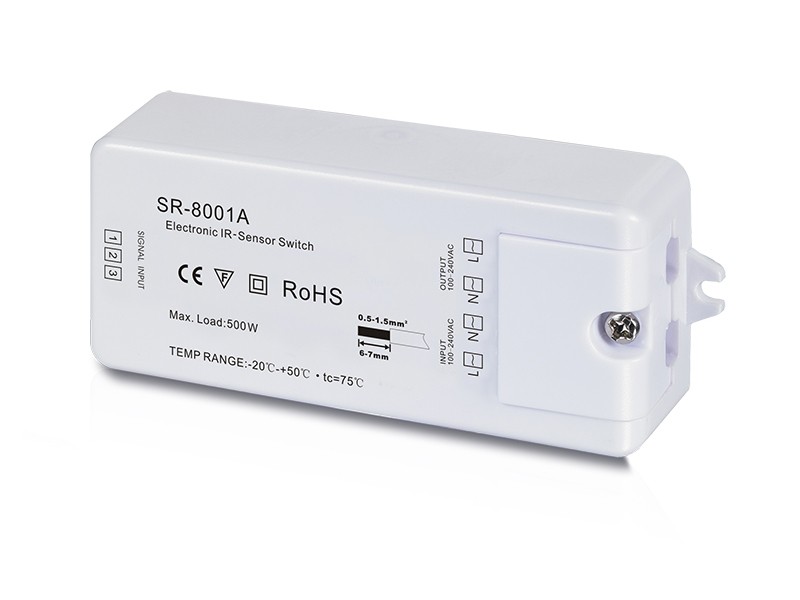

The SR-8001 series is a IR sensor switch with high sensitivity and detection range of 1-6cm. The IR sensor switch is designed with compact size and available in AC version and DC version. For SR-8001A, hand wave will turn on or turn off the light and any reflection within the detection range would switch on the light and swicth off when a new motion is detected. For SR-8001B, any reflection within the detection range would cause the status OFF of switch and no reflection to cause status ON of switch. The IR sensor switch is ideal for kitchen,furniture, mirror etc.
Key Features
- Any reflection within the detection range would switch on the light and swicth off when a new motion is detected (SR-8001A)
- Any reflection within the detection range would cause the status OFF of switch and no reflection to cause status ON of switch (SR-8001B)
- Detection range: 1-6cm
- Diameter of drilling hole: 10mm
- Load type: Hv-Halogen lamps, LED lamps, electronic ballast
- Ideal for kitchen, furniture, mirror, etc.
- Two types of sensor shell available
- DC12-36V version is also available
Download Center
To know further details of this product, please download the following user manual.
SR-8001 User Manual
