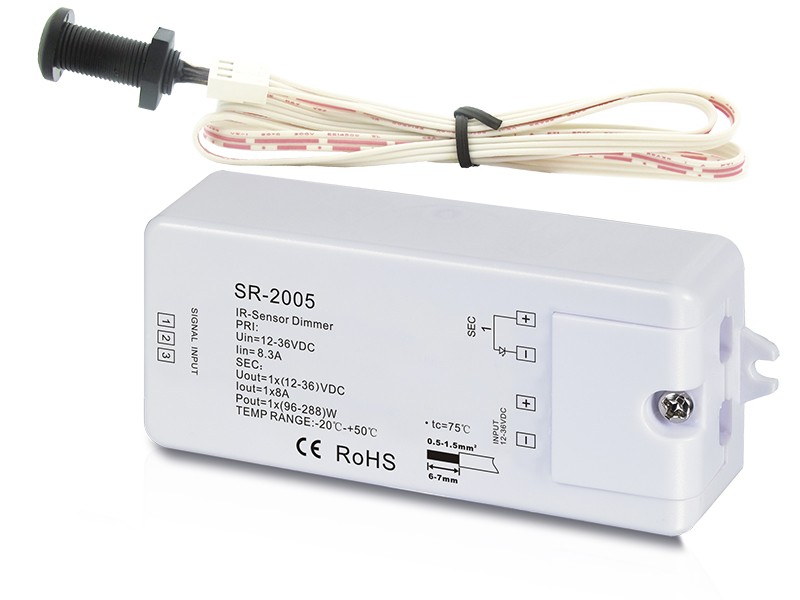

- IR Hand-wave Sensor Dimmer SR-2005
The SR-2005 is a IR hand-wave sensor dimmer with high sensitivity and maximum detection range of 6cm. The IR sensor dimmer is designed with compact size, 1 channel output and available in constant current version and constant voltage version to work with different types of LED lamps. The light will be switched on/off when you put your hand in or move your hand away from the sensoring area and a dimming duration will happen when your hand stays in the sensoring area for a while (cycling diming: darkest-brightest-darkest-brightest...). Each recycle of the dimming duration (darkest-brightest-darkest) lasts for around 16-20 seconds. Smooth, soft and gentle dimming can be achieved by the sensor dimmer without any flickering. Designed with memory function, this IR sensor dimmer can remember the last brightness when it is powered on again.
Key Features
Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) | Remarks |
---|---|---|---|---|---|---|
SR-2005 | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 | Dim & Switch |
SR-2018 | 12-36VDC | 1CH, 0.35A/CH | 4.2-12.6W | Constant Current | 33*82*20 | Dim & Switch |
SR-2020 | 12-36VDC | 1CH, 0.7A/CH | 8.4-25.2W | Constant Current | 33*82*20 | Dim & Switch |

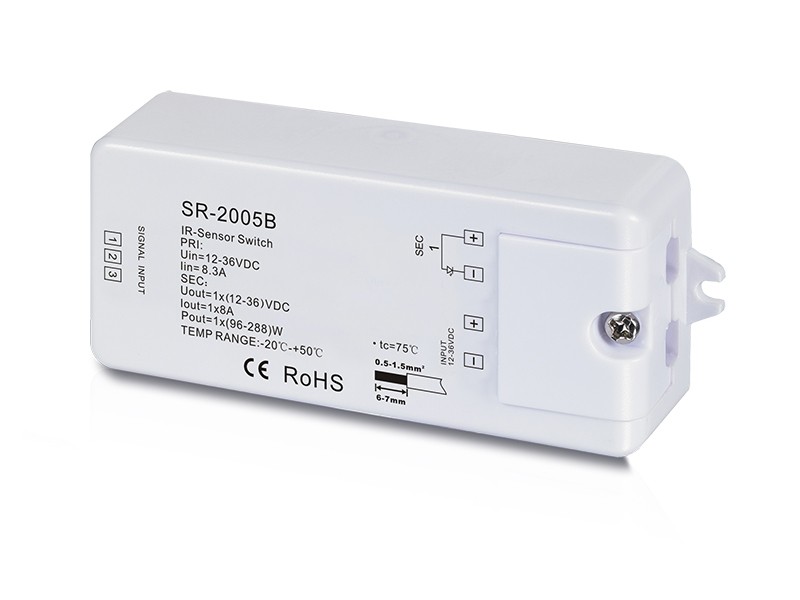

SR-2005B | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 | Only swicth |
SR-2018B | 12-36VDC | 1CH, 0.35A/CH | 4.2-12.6W | Constant Current | 33*82*20 | Only switch |
SR-2020B | 12-36VDC | 1CH, 0.7A/CH | 8.4-25.2W | Constant Current | 33*82*20 | Only witch |

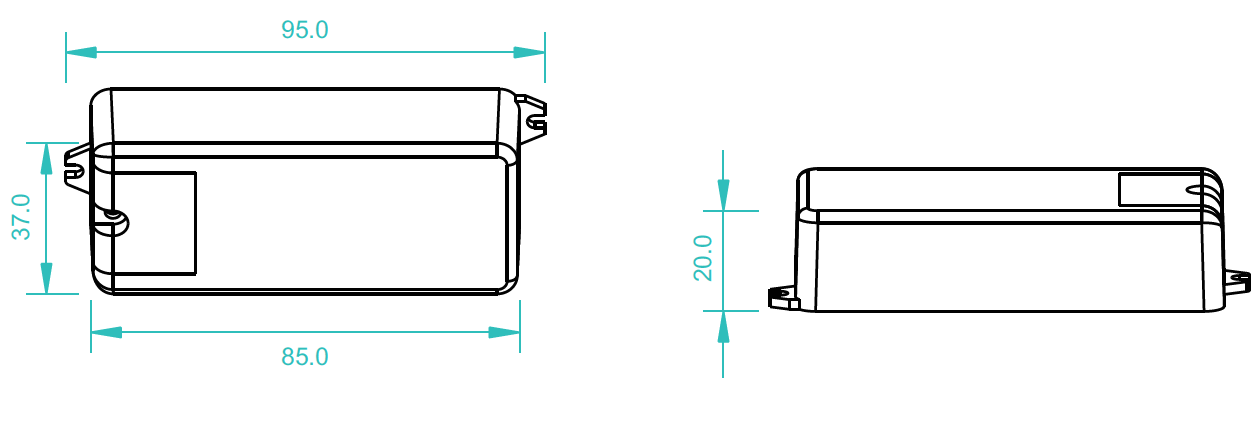

Product Dimension

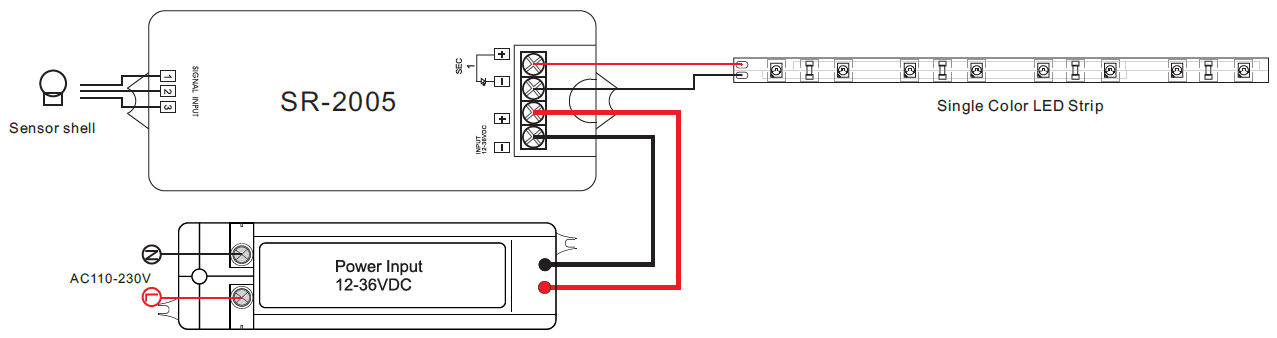

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2005 User Manual
