DT8 Rotary DALI Group Controller for Tunable White SR-2410RG-CCT-GL is a dual color DALI DT8 controller that controls 2 channels output (warm white and cool white) via a single DALI address. The panel controls 1 group address. The group of devices on DALI circuit to be controlled can be assigned manually by rotary switch on the back. All DALI devices on the circuit can be controlled by the panel through broadcast. The DALI panel enables dimming commands and DT8 commands to be sent to the selected group. DT8 commands enable easy color temperature adjusting for the dual color LED lights. The DALI controller enables to set a minimum output level and dim between this level to max. level. It is compatible with universal DALI masters that support DT8 commands and controls DT8 devices. It is easy to use and no configuration by computer required.

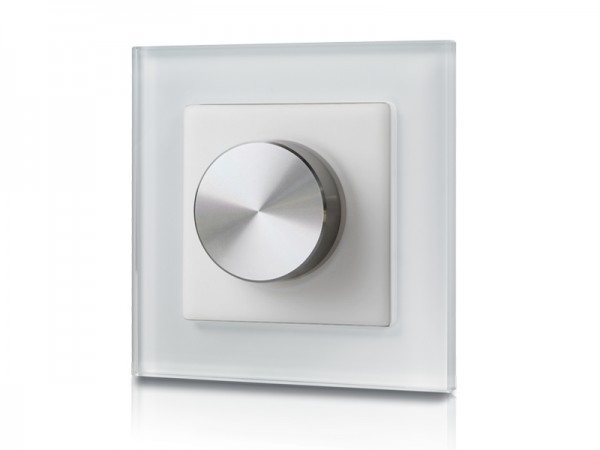

With high end glass frame design, the DALI controller is sleek and elegant with glossy appearance, which is suitable for high end hotel and office applications. Plastic frame is also available if you do not like glass frame. Unique status back lighting indicator surrounding the rotary knob enables users to know the status of controlled lighting clearly. The indicator will be turned on/off as the controlled lighting turns on/off, and light intensity will be changed as controlled lighting light intensity changes, also color temperature will be changed as the controlled lighting CCT changes. The controller can be easily fixed on the wall with supplied 3M adhesive tape or screws.
Key Features
- DT8 Rotary DALI Group Controller for Tunable White
- Controls DT8 devices
- Controls 2 channels output (warm white and cool white) via a single DALI address
- Control 1 Group Address
- Control of All DALI Devices on the circuit through Broadcast
- Enables dimming commands and DT8 commands to be sent to the selected group
- DT8 commands enable easy color temperature adjusting for the dual color LED lights
- Compatible with universal DALI masters that support DT8 commands
- Enable to Set Start Group Number Manually by Rotary Switch on the back
- Enable to Set a Minimum output level and dim between this level and max. level
- Easy to Use, No Configuration by Computer Required
- High End Glass Frame Design, Sleek and Elegant with Glossy Appearance
- Plastic Frame is also Available
- Can be Easily Fixed on the Wall with Supplied 3M Adhesive Tape or Screws
