- Full Touch RGBW/Y LED Controller SR-2818

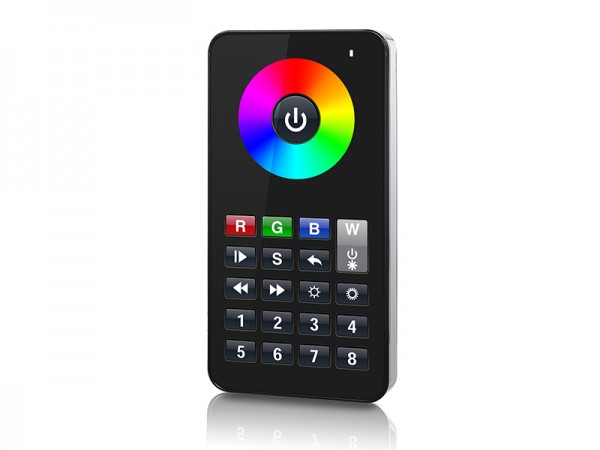

SR-2818 is a full touch RF&WiFi RGBW LED controller with color touch wheel which offers accurate and fast color tone adjustment and dimming key which offers independent adjustment of R, G, B and W channel. With ultra sensitive glass panel and user-friendly interface, the WiFi LED controller features great touch control experience with fast and precise feedback. Built-in 10 changing patterns can create fancy lighting effects, also you can save scenes if you do not like the preset ones. Each controller can control up to 8 zones with endless receivers in each zone. The touch controller can be WiFi controlled after installing APP on IOS and Android mobile devices.
Key Features
Following solutions are available to use this super RGBW LED Controller:
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2818 | 3.6VDC | 434MHz/869.5MHz/916.5MHz | 59*115*12 | Touch Sensor |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Product Dimension
Receiver Wiring Diagram
1. Super RGB Dimmer for your Touchpad Touch phone
The standard RF version is available, however we won't blame if you are more interested in the WiFi/Bluetooth version. Empower your iOS or Android phone today installing iPhone dimmer app and android dimmer app. No need to get down bed to turn off lights while reading on bed any longer.
2. 8 Zones Controlled Synchronously or Independently
You can control up to 8 zones for one time. With each zone connected with countless dimmable lights, it means you may dim as many lights as you like simultaneously. It's possible to switch off certain zones SEPARATELY if you don't need them by holding on that zone key for 5 seconds.
3. 10 Built-in Changing Modes
The 10 built in patterns may be not enough for you, that's why the "S" key exists. Save whatever color you like just by click "s". It can't be easier to have an interesting party at home.
4. Exactly Designed for your Easy Operation
Black version and white version for you to choose. A reset key is on the bottom left to restore factory settings. Use a standard USB adapter to charge your device, no battery needed.
Download Center
To know further details of this product, please download the following user manual.
SR-2818 User Manual
