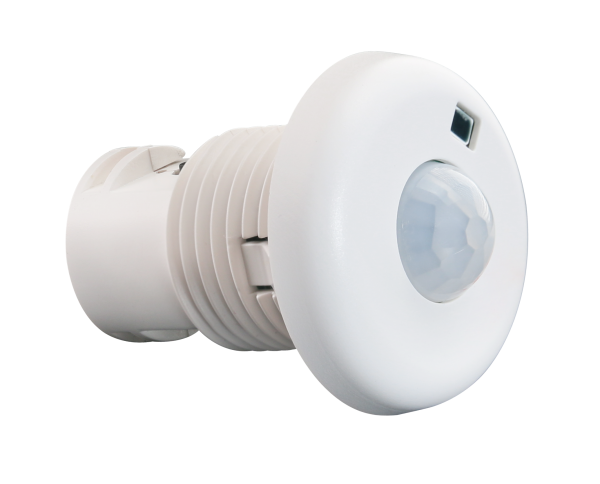

- Fixture Integrated Zigbee PIR+Photocell Sensor SR-ZG9032A-PIR
Product Description
The fixture-Integrated sensor combines occupancy sensing, daylight harvesting, 0-10V dimming and Zigbee radio circuits into a small package that fits into various luminaires. When used with 0-10V dim-to-off LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures with minimal engineering effort. The sensor-equipped luminaires just need to be connected to mains power. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes.
Key Features
• Zigbee 3.0 compliant
• PIR motion detection
• Daylight harvesting
• Works with 0-10V dim-to-off LED drivers
• Autonomous sensor-based control
• OTA firmware upgrade
• Ceiling recessed installation
• Can be use for indoor applications
Specifications
Part No. |
Input Voltage
|
Radio Frequency |
Wireless Range
|
Detection Angle
|
Dimensions / Weight
|
---|---|---|---|---|---|
SR-ZG9032A-PIR |
12/24 VDC
|
2.4GHz |
100 feet (30m) Line of Sight
|
150° (wall), 360° (ceiling)
|
See Dimensions / 12.3g (without locknut) / 21.3g (with locknut)
|
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9032A-PIR User Manual.pdf
