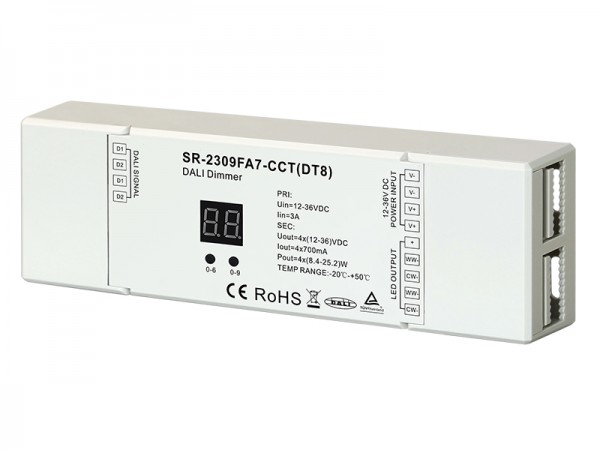

SR-2309FA7-CCT is a 4 channel constant current 700mA dual color DT8 DALI dimmer that complies to the latest IEC 62386-209:2011 standard and supports DT8 device commands. This device is controlled via a single DALI address and compatible with universal DALI master controllers that supports DT8 commands. DT8 commands enable easy color temperature adjusting between warm white and cool white. DALI address can be manually assigned and displayed via digital display. It is configurable via DALI software tool and DALI USB interface.
Key Features
- DALI certified
- TUV CE certified
- Dual Color DT8 DALI Dimmer with Color Temperature Control
- Complies to the latest IEC 62386-209:2011 standard
- 4 channels constant current 700mA output controlled via a single DALI address
- Color temperature adjustment according to DALI specifications of Device Type 8, Color Type Tc.
- Color control as defined in the DALI specification for device type 8, color type Tc.
- Compatible with universal DALI master controllers that supports DT8 commands
- DALI address can be manually assigned and displayed via digital display
- Configurable via DALI software tool and DALI USB interface
