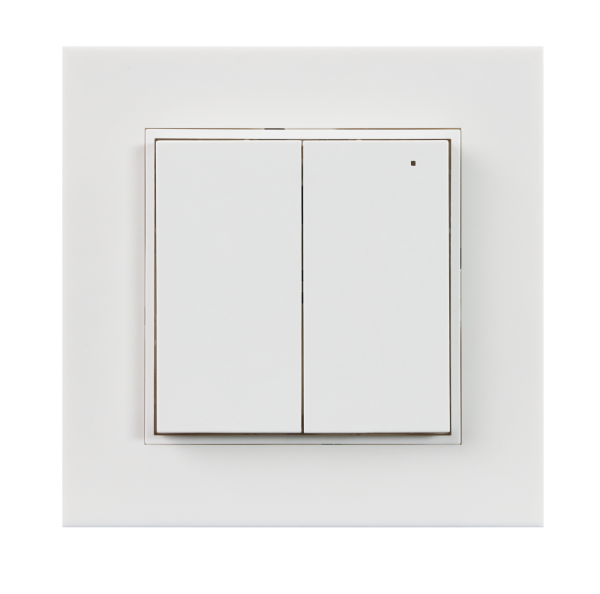

SR-ZG9001NK4-DIM is a single color ZigBee remote control that enables switch and dimming control and works with a ZigBee gateway/coordinator, it shall join ZigBee network and bind compatible ZigBee lighting devices from ZigBee controller or hub interface so that it can control the devices.The ZigBee remote can be compatible with universal ZigBee gateway/coordinator and lighting devices thanks to interoperability of products with the same ZigBee Wireless standard.
Key Features
- ZigBee dim remote based on ZigBee 3.0
- Enables to control single color lighting devices

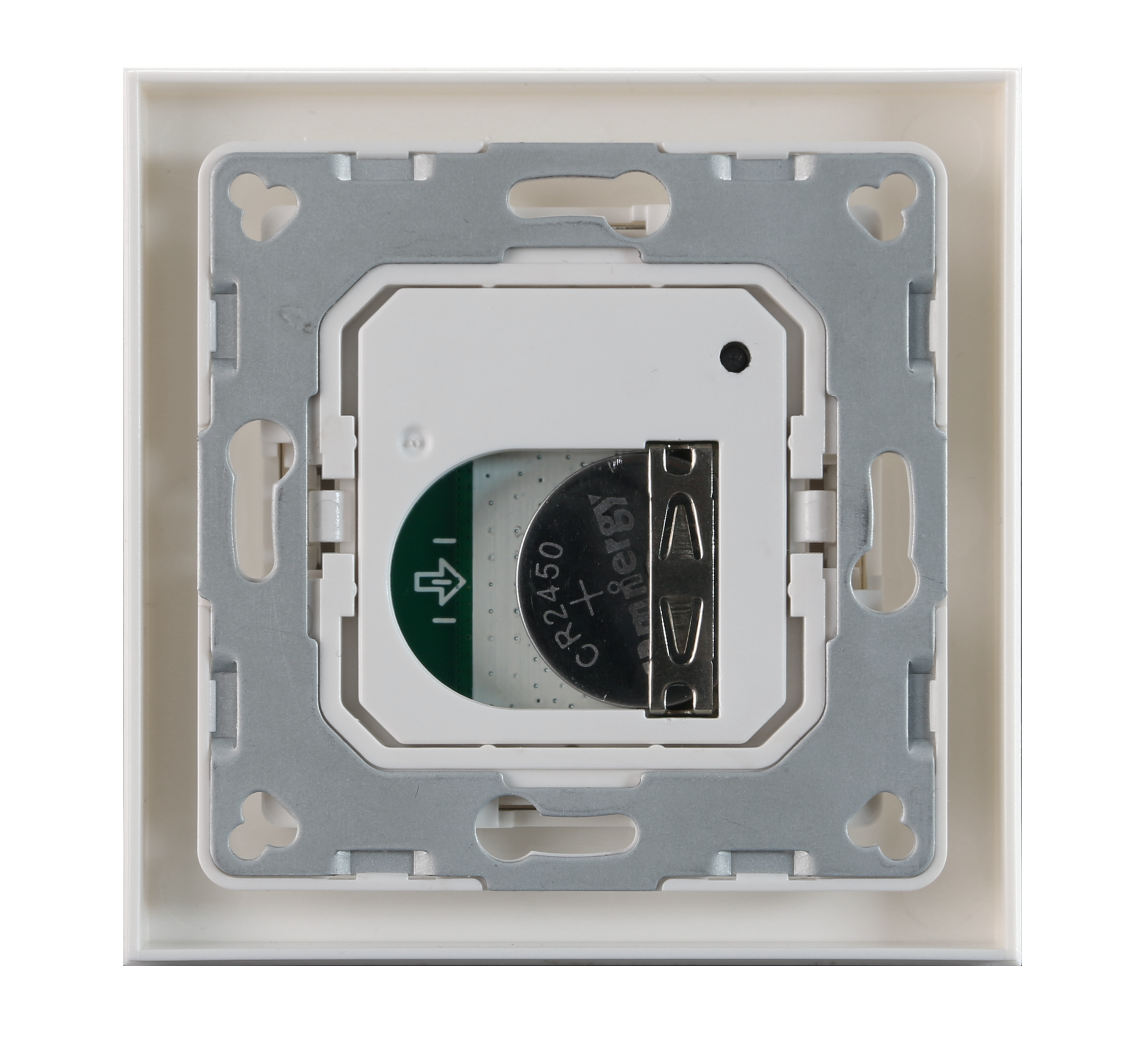

- Battery powered remote with low power consumption
- Enables to pair ZigBee lighting devices via touchlink commissioning without coordinator
- Supports find and bind mode to pair with ZigBee lighting devices
- Supports 1 group for binding max. 30 lighting devices
- 2.4 GHz global operation
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway products
- Compatible with universal single color ZigBee lighting devices
- Front plate can be replaced with 8-key or 2-key front plate
