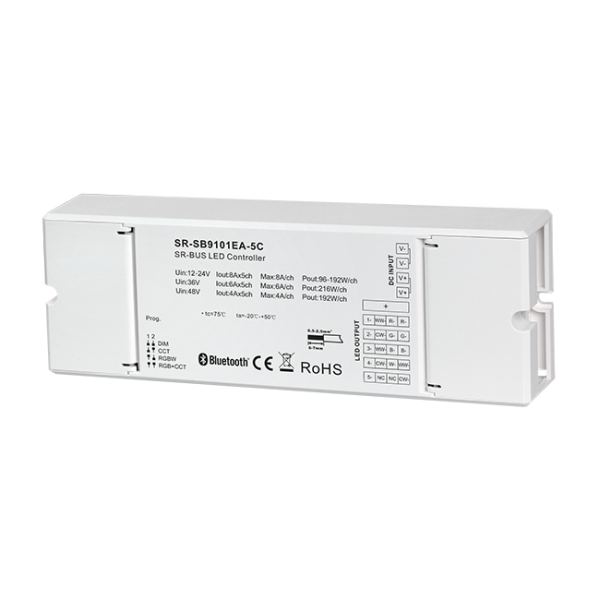

DIM CCT RGBW RGB+CCT 4in1 Constant Volt 2.4G Mesh LED Controller SR-SB9101EA-5C-PUSH

SR-SB9101EA-5C-PUSH is a DIM CCT RGBW RGB+CCT 4 in 1 constant voltage bluetooth LED controller with 5 channels output to control single color, tunable white, RGBW and RGB+CCT LED lighting, and different lighting types can be selected through dip switches. The bluetooth LED controller is designed with bluetooth and RF control interface and with flexible control options including bluetooth APP, RF remote. In addition, cloud control is ready for the LED controller, which enables remote access. Thanks to the cloud, it can communicate and work with the mainstream popular smart home platforms such as Amazon Alexa, Google Assistant and Yandex Alisa, which enable users to control it through voice commands and free the hands.

It is designed with DC 12-48V input and 5 channel constant voltage output, max. output current per channel can be up to 8A@12V/24V.

Features:

• 4 in 1 universal 2.4G mesh LED controller, radio frequency: 2.4GHz

• 4differentdevicemodesDIM, CCT, RGBWandRGB+CCT in 1 controller, and selectable by dial switch

• Enables to control ON/OFF, light intensity, color temperature, RGB color of connected LED lights

• Ultra powerful to control Single Color, CCT, RGBW, RGB+CCT LED strips

• Controlled through both smart App and remote controls, no gateway required

• Can be configured as six different light types: RGB+CCT, RGBW, RGB, CCT, DIM, ON/OFF through the APP

• Easy & quick pairing to the smart App by simply pushing the Prog. button

• Mesh network, much longer control distance, transmits received signal to neighbor devices

• Upto30mtransmission distance between every two neighbor devices

• Encrypted two-way communication, quick status feedback, safe & reliable data transmission

• Compatible with universal 2.4G mesh remotes, each LED controller can pair to max. 8 remotes

• Cloud control is available for remote access, works with Amazon Alexa and Google Home

• Can be controlled by existing push switches even if without 2.4G mesh signal

Specifications

Part No.	Input Voltage	Output Current	Output Power	Connector Current Rating	Dimension (LWH)
SR-SB9101EA-5C-PUSH	12-48VDC	Max. 8A/CH@12V/24V Max. 6A/CH@36V Max. 4A/CH@48V	Max. 96W/CH@12V Max. 192W/CH@24V Max. 216W/CH@36V Max. 192W/CH@48V	Max. 20A	170x59x29mm

Wiring Diagram

Wiring Diagram

Download Center

To know further details of this product, please download the following user manual.

SR-SB9101EA-5C-PUSH User Manual
