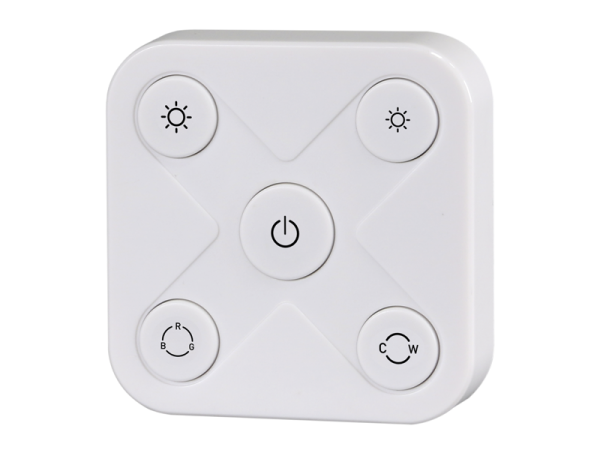

- Dim CCT RGB 3 in 1 ZigBee Push Button Remote SR-ZG2855-5C
SR-ZG2855-5C is a Dim CCT RGB 3 in 1 zigbee push button remote controller that enables switch, dimming, color temperature control, RGB color control of zigbee lighting devices and works with a zigbee gateway/coordinator, it shall be added to a zigbee network and bind compatible zigbee lighting devices from zigbee controller or hub interface so that it can control the devices. This zigbee remote supports 1 group for binding max. 30 lighting devices and enables to control single color, tunable white, RGB and RGB+CCT zigbee lighting devices. It is a low cost zigbee remote powered by a 3VDC button batteries due to robust, reliable ZigBee PRO networking. With magnet bracket, the remote is easy to fasten.
The zigbee remote can be compatible with universal zigbee gateway/coordinator and lighting devices thanks to interoperability of products with the same zigbee Wireless standard.
The zigbee remote supports Touchlink commissioning to bind directly to a lighting device without a zigbee hub or Touchlink after the remote and device are both added to the zigbee hub network.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-ZG2855-5C | 3VDC (CR2430) | 2.4GHz | 55*55*10.6 | touch control |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-ZG9101EA-5C | 12-36VDC | 5CH, 5A/CH | 300-900W | Constant Voltage | 59*170*29 |
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG2855-5C User Manual
