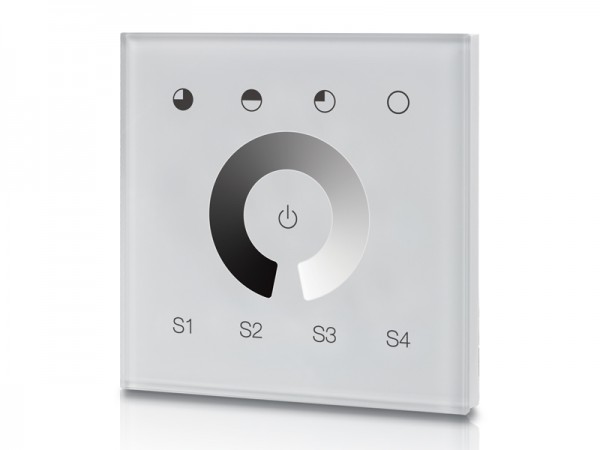

The DALI master SR-2300TR-DIM is a touch DALI dimmer which adopts high strength and ultra sensitive tempered glass panel to offer accurate and fast brightness adjustment functions to control single color LEDs, the LED controller complies to IEC 62386-102, IEC 62386-207 and can be compatible with DALI products from other international corporations. The touch color wheel enables smooth brightness adjustment. The DALI master can control 1 DALI address and 4 DALI scenes (EU Version) or 6 DALI scenes (US Version). It enables to set the DALI address number (total 64 addresses from 0-63) to be controlled by rotary switches on the back. Europe and US versions are both available and easy to be installed into existing standard size wall box.
This DALI controller is available with both 100-240VAC input and 12-24VDC input versions. AC input version is designed with built-in 100mA DALI power supply to power up to 50 DALI ECG and it can also be powered by DALI bus while not connected to AC mains. Max. 100 DALI ECG can be controlled by 4 AC input DALI touch panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
- Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
- Touch interface operation design, easy to use.
- With bus detective function, one channel DALI bus can install multiple controllers.
- 12-24VDC input and 100-240VAC input versions optional.
- AC input version with built-in 100mA DALI power supply to power up to 50 DALI ECG.
- AC input version can also be powered by DALI bus while not connected to AC mains.
- Max. 100 DALI ECG can be controlled by 4 AC version DALI panels via broadcast on a control circuit with 2 connected to AC mains and 2 powered by DALI bus.
- Control 1 DALI address and 4 DALI scenes (EU Version) or 6 DALI scenes (US Version)
- Easy to Select and Control Designated DALI address.
- Smooth Brightness Adjustment.
- EU & US Size Available, Easy Installation Into Existing Wall Box
|Part No.||Operation Voltage||Output||Dimension (mm)|
Product Dimension for SR-2300TR-DIM-EU
Product Dimension for SR-2300TR-DIM-US
Installation for SR-2300TR-DIM-EU
Installation for SR-2300TR-DIM-US
