SR-2400BRC-DIM is a DALI DT6 broadcast module which can be used to expand DALI circuit. This module receives DT6 commands from DALI main circuit as a control gear with a single address, and forwards received DALI commands to all control gears connected to its DALI OUT. All control gears connected to DALI OUT will be controlled by the forwarded broadcast DALI commands. All control gears connected to DALI OUT will be controlled via the DALI address of the module. It is designed with DALI power supply output (150mA) to power max. 64 control gears. No DALI addressing required for the control gears connected to DALI OUT. The broadcast module greatly reduces time and cost of commissioning and simplifies maintenance. Multiple modules can be connected to DALI main circuit to establish multiple DALI sub-circuits to extend the number of DALI control gears in the DALI main circuit drastically.
Key Features
- DT6 DALI broadcast module, simple and easy to expand DALI circuit
- Receives DT6 commands from DALI main circuit as a control gear with a single address
- Forwards received DALI commands to all control gears connected to its DALI OUT
- All control gears connected to DALI OUT will be controlled by the forwarded broadcast DALI commands
- All control gears connected to DALI OUT will be controlled via the DALI address of the module
- Output with DALI power supply (150mA) to power max. 64 control gears
- No DALI addressing required for the control gears connected to DALI OUT
- Reduces time and cost of commissioning and simplifies maintenance

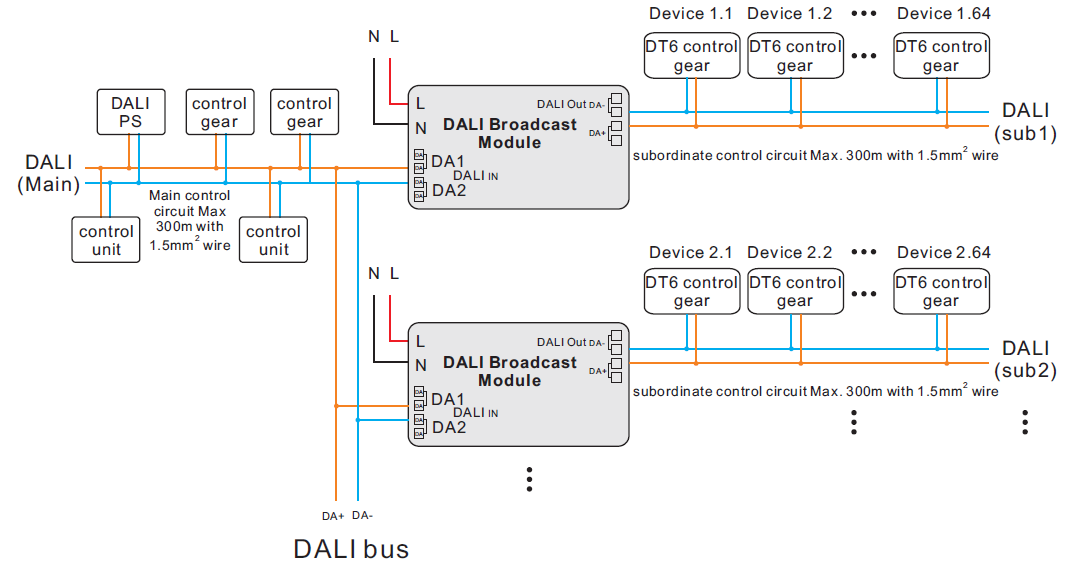

- Multiple modules can be connected to DALI main circuit to establish multiple DALI sub-circuits
- The number of DALI control gears in the DALI main circuit can be extended drastically
- Error detection and monitoring function
- Mains power supply, DALI input (DALI IN), DALI output (DALI OUT) are fully isolated from each other
