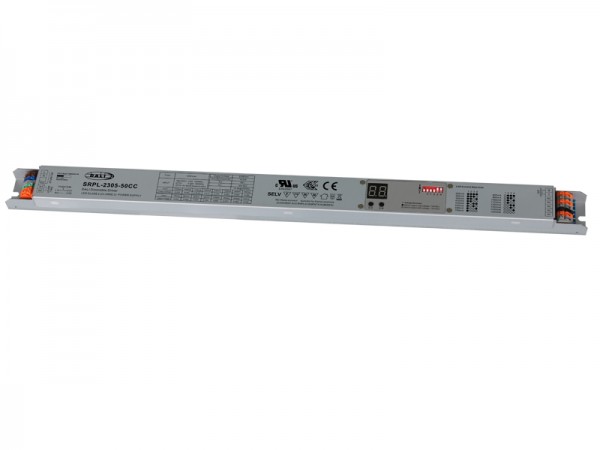

SRPL-2305-50CC is a DALI-2 certified long metal casing 50w dimmable LED driver. It is designed with 1 channel constant current output with adjustable current from 250mA to 1500mA by DIP switches, which enables it to be suitable for LED lights with different current. It is designed with 100-277VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.
Key Features
- Industry first DALI-2 certified dimmable LED driver
- UL, ENEC certified
- Max. output power 50W
- 1 channel constant current output, 250mA ~ 1500mA Adjustable by DIP switches
- Class Ⅱ power supply, full isolated metal case
- Rubycon capacitors
- Built-in active PFC function
- High power factor and efficiency, PF > 0.9, Efficiency > 87%
- Complying with IEC62386-101:2014, 102:2014, 207 ed2, scalable system
- Supports DALI-2 input devices: Occupancy, light sensors and push buttons
- Fade time, system failure level, power on level configurable
- 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters
- To control single color LED lighting
- Smooth and deep dimming to 0.1% without flickering, no buzzing noise
- Error report function
- IP20 rating, suitable for indoor LED lighting applications
