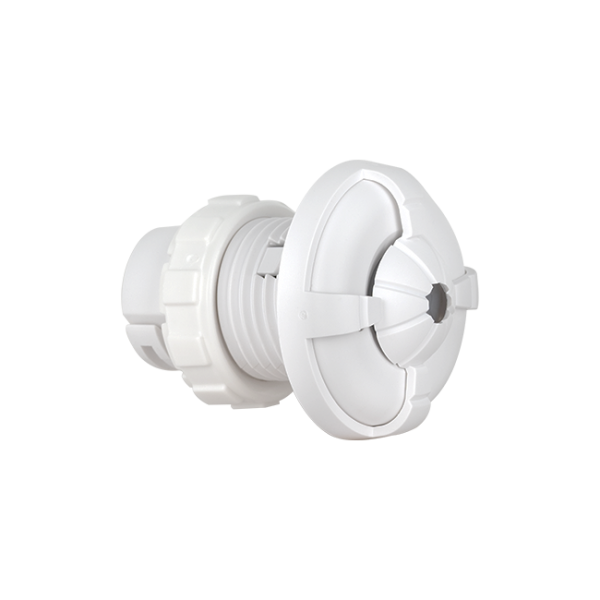

DALI BLE Fixture-integrated PIR Sensor Controller SR-BL9032A-PIR-D

Key Features

• Bluetooth to DALI signal PIR sensor controller, Bluetooth® mesh network
• Max.30mA DALI power consumption
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on DALI line are broadcast controlled by mobile application
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation.
• Available with Magnetic reset (Touch the top part of sensor for 5 seconds)
• On-board antenna
• Waterproof grade: IP20
• 5 years warranty
